Cooling system components, overview
WARNING: This page is about a different car, the 2006 Audi A4, 2005 Audi A4, 2004 Audi A4, and 2003 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

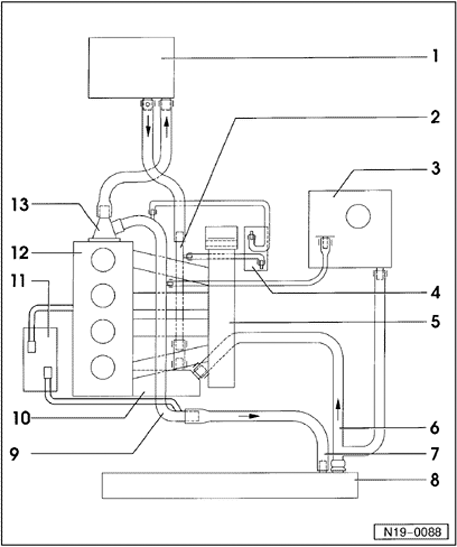

Coolant hose connection diagram
1 - Heat exchanger for heater
- After replacing, fill with fresh coolant
2 - Coolant line (lower)
3 - Expansion tank
- With cap
- Checking pressure relief valve in cap
4 - Oil cooler
5 - Intake manifold
6 - Coolant hose (lower)
7 - Coolant hose (top)
8 - Radiator
- Removing and installing → Radiator, removing and installing
- After replacing, fill with fresh coolant
9 - Coolant line (top)
10 - Coolant pump/thermostat
- Removing and installing coolant pump → Coolant pump, removing and installing
- Check for ease of movement
11 - Turbocharger
12 - Cylinder head/cylinder block
- After replacing, fill with fresh coolant
13 - Connection
