Part II: Notes
WARNING: This page is about a different car, the 2006 Audi A4, 2005 Audi A4, 2004 Audi A4, and 2003 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

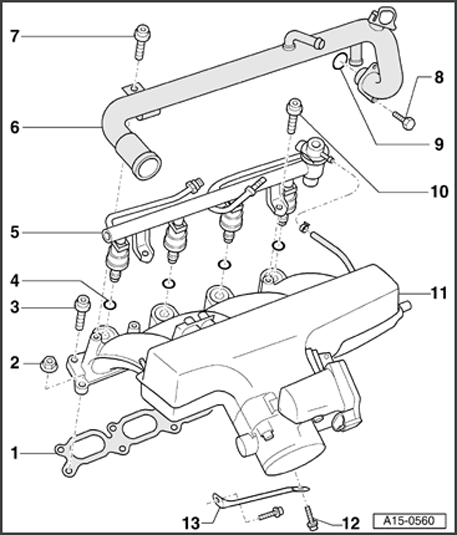

1 - Gasket
- Note installed position
- Replace
2 - 10 Nm
3 - 10 Nm
4 - O-ring
- For injector
- Replace
5 - Fuel rail
- With injectors
- Vehicles up to 06.03: Tighten union nut for fuel supply line to 22 Nm
- Vehicles as of 07.03: Loosening and tightening union nut for fuel supply line to fuel rail pipe Loosening and tightening union nut for fuel supply line in vehicles as of 07.03
6 - Coolant line (top)
7 - 10 Nm
8 - 10 Nm
9 - O-ring
- For top coolant line
- Replace
10 - 10 Nm
11 - Intake manifold
12 - 20 Nm
13 - Support
- For intake manifold
