Ribbed belt for generator, vane pump and air conditioner compressor: Notes

WARNING: This page is about a different car, the 2006 Audi A4, 2005 Audi A4, 2004 Audi A4, and 2003 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Mark direction of the ribbed belt with chalk or felt-tip pen prior to removal. Running a used belt in the opposite direction could destroy it. When installing the belt, make sure it is properly seated on pulleys.

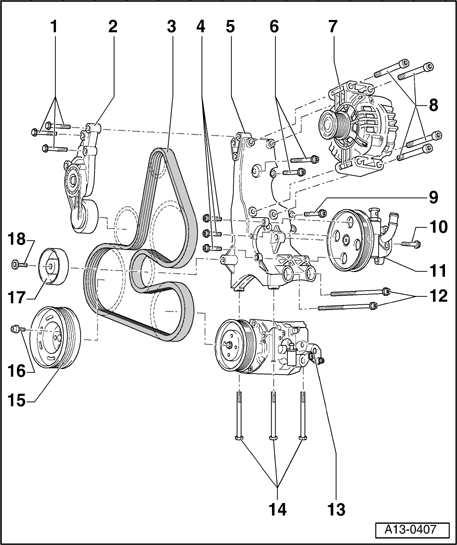

Fig 1: Ribbed Belt For Generator, Vane Pump And Air Conditioner Compressor Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - 25 Nm

2 - Tensioning roller

3 - Ribbed belt

Mark direction of rotation before removing
Removing and installing → Ribbed belt, removing and installing

4 - 25 Nm

5 - Bracket

For generator, power steering pump and air conditioning compressor
Removing and installing → Bracket for generator, power steering pump and air conditioning compressor, removing and installing

6 - 40 Nm

7 - Generator

Removing:

See Caution before beginning repairs on electrical system → Engine, disassembling and assembling

Disconnect battery Ground (GND) strap
Loosen ribbed belt and remove from generator → Ribbed belt, removing and installing .
Loosen bolted connection at top and bottom.
Swivel generator to side slightly and disconnect electrical connectors.

Remove generator.

8 - 20 Nm

9 - 40 Nm

10 - 20 Nm

11 - Power steering pump

Removing and installing: → 48 - STEERING

12 - 40 Nm

13 - Air conditioning compressor

When installing, pay attention to dowel sleeves

14 - 20 Nm

15 - Vibration damper/pulley

Can only be installed in one position Installing vibration damper/pulley

16 - Collared bolt, 10 Nm + 90 ° * See note

17 - Idler wheel

Secured to bracket for generator, power steering pump and air conditioning compressor

18 - Special bolt, 25 Nm

For idler wheel
