Bracket for generator, power steering pump and air conditioning compressor, removing and installing: Installing

WARNING: This page is about a different car, the 2006 Audi A4, 2005 Audi A4, 2004 Audi A4, and 2003 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order, paying attention to the following:

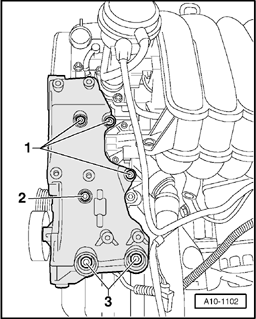

Fig 1: Removing/Installing Bracket For Generator, Power Steering Pump And A/C Compressor At Bolts

GW00017328

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Replace micro-encapsulated (threads coated with locking compound) collared bolts and position bracket for generator, power steering pump and air conditioning compressor on cylinder block.
Tighten micro-encapsulated collared bolts in diagonal sequence:

Bolt M10 x 45
Bolt M10 x 75
Bolt M10 x 155

Only for replacement of bracket

Bolt idler wheel for ribbed belt to bracket for generator, power steering pump and air conditioning compressor.

All models

To ease installation of power steering pump, knock back bushing on rear securing bolt slightly.
Install ribbed belt → Ribbed belt, removing and installing .
Fill cooling system → Cooling system, draining and filling .

See Caution for connecting Telematics battery → Engine, disassembling and assembling

After connecting battery, enter radio anti-theft code. Radio operating instructions.
Use electric window lifters to completely close door windows.
Then actuate all window lifter switches again for at least 1 second in "close" position to activate automatic one-touch function.
Set clock to correct time.
