Cylinder Head - Tightening Specification And Sequence

WARNING: This page is about a different car, the 2012 Audi S5, 2011 Audi S5, and 2010 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

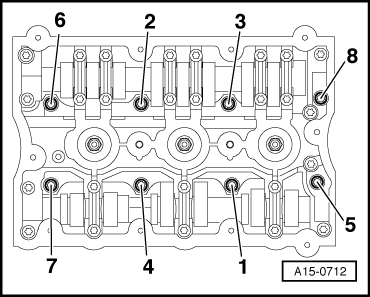

Fig 1: Identifying Cylinder Head Bolts Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Replace any bolts that were tightened with an additional turn.

-- Tighten the bolts in 4 steps and in the sequence shown:

Stage	Bolts	Tightening Specification/Additional Turn
1.	-1 through 8-	Install all the way in by hand.
2.	-1 through 8-	40 Nm
3.	-1 through 8-	Tighten 90° further
4.	-1 through 8-	Tighten 90° further
