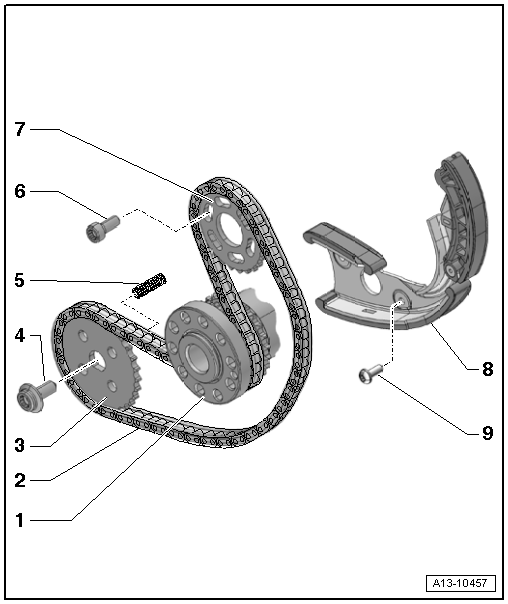

Power Take-Off Drive Chain Overview
WARNING: This page is about a different car, the 2012 Audi S5, 2011 Audi S5, and 2010 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Crankshaft
- Power Take-Off Drive Chain
- Mark the running direction with paint for reinstallation
- Removing and installing, refer to POWER TAKE-OFF DRIVE CHAIN
- Drive Sprocket for Oil Pump
- Installed position: The labeled side faces the engine
- Bolt
- 30 Nm plus an additional 90° turn
- Replace
- Pressure Spring
- Bolt
- 15 Nm plus an additional 90° turn
- Replace
- Balance Shaft Chain Sprocket
- Installed position: The labeled side faces the transmission
- Chain Tensioner
- With glide track
- Bolt
- 10 Nm plus an additional 45° turn
- Replace
