Vibration Damper: Removing

WARNING: This page is about a different car, the 2012 Audi S5, 2011 Audi S5, and 2010 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Coolant Pipes

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Air Conditioning (A/C) compressor ribbed belt. Refer to SUPERCHARGER RIBBED BELT .

NOTE:

The engine is not shown in the following illustrations.

-- Remove the bolt -2- on the left front coolant pipes.

NOTE:

Ignore -1-.

NOTE:

The engine is not shown in the following illustrations.

Vehicles with Left Front Coolant Pipes, Version 1

Fig 2: Identifying Hose Clamps -1 And 3- & Left Front Coolant Hose

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2- on the left front coolant pipes.

NOTE:

Ignore -1 and 3-.

Vehicles with Left Front Coolant Pipes, Version 2

Fig 3: Locating Lower Coolant Pipe Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1- on the left front coolant pipes.

NOTE:

Ignore -arrows-.

All Vehicles

Fig 4: Identifying Bolts And Bumper Cover

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bumper cover end plate. Refer to "Front Bumper" in FRONT BUMPER .

-- Remove the left and right bolts -1- and remove the radiator bracket with the radiator from the lock carrier -arrow-.

Fig 5: Identifying Radiator Lock Carrier

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wiring harness.

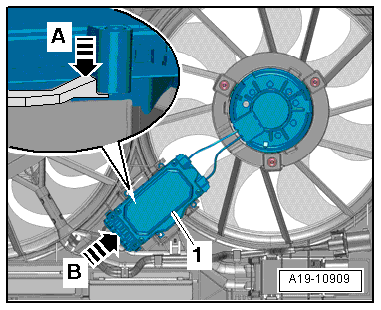

Fig 6: Opening Retainer A Then Remove Coolant Fan Control Module

Courtesy of AUDI OF AMERICA, LLC

-- Open the retainer -arrow A- then remove the coolant fan control module 2 -J671- -1- from the fan shroud -B- and move it to the side.

Vehicles with Hydraulic Power Steering

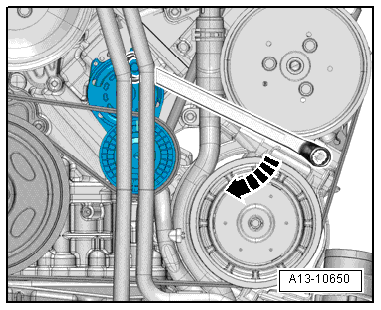

Fig 7: Releasing Belt Tension

Courtesy of AUDI OF AMERICA, LLC

-- Pivot the tensioner clockwise -arrow- to release the tension on the ribbed belt.

-- Remove the ribbed belt from the vibration damper and release the tension on the tensioning element.

Vehicles with Electro-Mechanical Power Steering

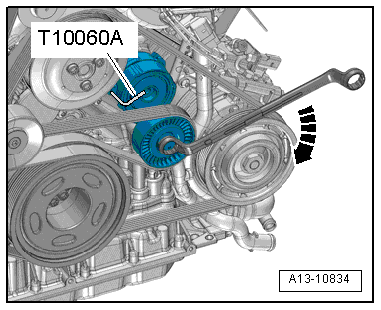

Fig 8: Pivoting Tensioner Clockwise To Release Tension On Ribbed Belt

Courtesy of AUDI OF AMERICA, LLC

-- Pivot the tensioner clockwise -arrow- to release the tension on the ribbed belt.

-- Remove the ribbed belt from the vibration damper and release the tension on the tensioning element.

NOTE:

Ignore T10060 A.

All Vehicles

Fig 9: Identifying Vibration Damper

Courtesy of AUDI OF AMERICA, LLC

-- Remove the vibration damper bolts -1- ; to do this, counter hold it using the 3036.

-- Remove the vibration damper.
