Supercharger Ribbed Belt: Installing

WARNING: This page is about a different car, the 2012 Audi S5, 2011 Audi S5, and 2010 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

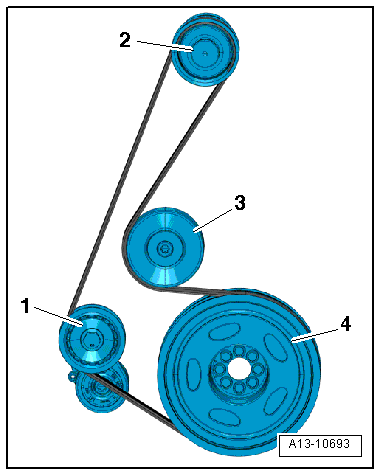

Fig 1: Identifying Correct Belt Installation

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

-- Place the ribbed belt over the pulley as illustrated:

Tensioning element
Supercharger
Idler roller
Vibration damper

NOTE:

When installing the ribbed belt, make sure it is seated correctly on the pulleys.

-- Start the engine and check the belt routing.

-- Install the noise insulation. Refer to NOISE INSULATION .
