Ribbed Belt Drive, Vehicles With Hydraulic Power Steering Overview
WARNING: This page is about a different car, the 2012 Audi S5, 2011 Audi S5, and 2010 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

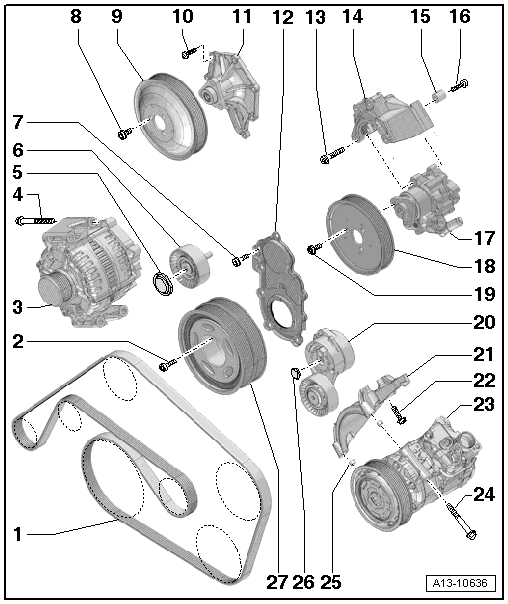

- Ribbed Belt
- Check for wear
- Before removing, mark direction of rotation using chalk or felt-tip marker
- Removing and installing, refer to RIBBED BELT, VEHICLES WITH HYDRAULIC POWER STEERING
- Do not kink
- When installing, make sure it is seated correctly on the ribbed belt pulleys
- Bolt
- 20 Nm plus an additional 90° turn
- Replace
- Generator
- Removing and installing, refer to GENERATOR, REMOVING AND INSTALLING
- Bolt
- For the correct tightening specification, refer to the appropriate service information
- Idler Roller Cover
- Idler Roller for Ribbed Belt
- 40 Nm
- Bolt
- Tightening specification and sequence, refer to Fig 2
- Bolt
- Tightening specification, refer to item 2: COOLANT PUMP, COOLANT THERMOSTAT AND CONNECTING PIECE OVERVIEW
- Ribbed Belt Pulley for Coolant Pump
- Removing and installing, refer to COOLANT PUMP
- Bolt
- Tightening specification, refer to item 1: COOLANT PUMP, COOLANT THERMOSTAT AND CONNECTING PIECE OVERVIEW
- Coolant Pump
- Removing and installing, refer to COOLANT PUMP
- Sealing Flange (belt pulley side)
- Removing and installing, refer to SEALING FLANGE WITH CRANKSHAFT SEAL, BELT PULLEY SIDE
- Bolt
- Tightening specification, refer to SPECIFICATIONS
- Power Steering Pump Bracket
- Slide Bushing
- Bolt
- Tightening specification, refer to SPECIFICATIONS
- Power Steering Pump
- Removing and installing, refer to REMOVAL AND INSTALLATION
- Power Steering Pump Belt Pulley
- Removing and installing, refer to REMOVAL AND INSTALLATION
- Bolt
- Tightening specification, refer to SPECIFICATIONS
- Ribbed Belt Tensioning Damper
- 40 Nm
- Removing and installing, refer to RIBBED BELT TENSIONING DAMPER, VEHICLES WITH HYDRAULIC POWER STEERING
- Bracket for Air Conditioning Compressor
- Removing and installing, refer to A/C COMPRESSOR
- Bolt
- Tightening specification, refer to the appropriate service information
- A/C Compressor
- Do not unfasten/separate refrigerant lines
- Removing and installing, refer to the appropriate service information
- Bolt
- Tightening specification, refer to the appropriate service information
- Alignment Bushing
- Quantity: 2
- Tensioner Cover
- Vibration Damper
- With double ribbed belt pulley
- Removing and installing, refer to VIBRATION DAMPER
-- Tighten the bolts -arrows- in a diagonal sequence in stages to 9 Nm.
