Ribbed Belt Drive, Vehicles With Electro-Mechanical Power Steering Overview
WARNING: This page is about a different car, the 2012 Audi S5, 2011 Audi S5, and 2010 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

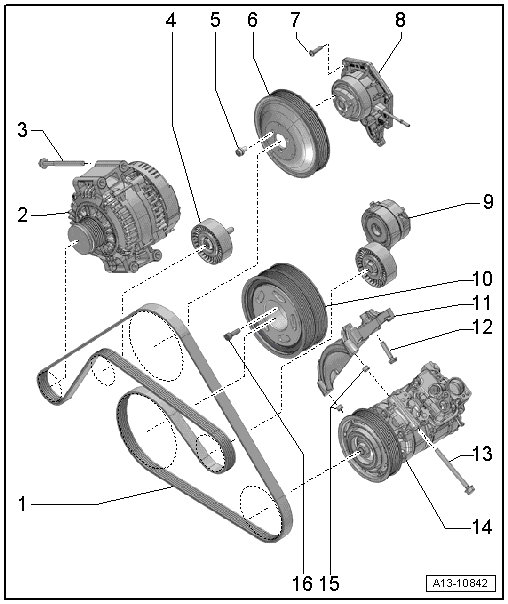

- Ribbed Belt
- Check for wear
- Before removing, mark direction of rotation using chalk or felt-tip marker
- Removing and installing, refer to RIBBED BELT, VEHICLES WITH ELECTRO-MECHANICAL POWER STEERING
- Do not kink
- When installing, make sure it is seated correctly on the ribbed belt pulleys
- Generator
- Removing and installing, refer to GENERATOR, REMOVING AND INSTALLING
- Bolt
- For the correct tightening specification, refer to the appropriate service information
- Idler Roller
- 40 Nm
- For the ribbed belt
- Bolt
- Tightening specification, refer to item 2: COOLANT PUMP, COOLANT THERMOSTAT AND CONNECTING PIECE OVERVIEW
- Ribbed Belt Pulley
- For coolant pump
- Removing and installing, refer to COOLANT PUMP
- Bolt
- Tightening specification, refer to item 1: COOLANT PUMP, COOLANT THERMOSTAT AND CONNECTING PIECE OVERVIEW
- Coolant Pump
- Removing and installing, refer to COOLANT PUMP
- Tensioning Element
- 40 Nm
- For the ribbed belt
- Removing and installing, refer to RIBBED BELT TENSIONING DAMPER, VEHICLES WITH ELECTRO-MECHANICAL POWER STEERING
- Vibration Damper
- With ribbed belt pulley
- Installation is only possible in one position because of the offset holes
- Removing and installing, refer to VIBRATION DAMPER
- Bracket
- For Air Conditioning (A/C) compressor
- Removing and installing, refer to A/C COMPRESSOR
- Bolt
- Tightening specification, refer to the appropriate service information
- Bolt
- Tightening specification, refer to the appropriate service information
- A/C Compressor
- Do not unfasten/separate refrigerant lines
- Removing and installing, refer to A/C COMPRESSOR
- Alignment Bushing
- Quantity: 2
- Bolt
- Tightening specification, refer to item 2: 2
