ATF Pipes And ATF Cooler, Cleaning

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Audi S5, 2014 Audi S5, 2013 Audi S5, 2012 Audi S5, and 2011 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Oil Collecting and Extracting Device V.A.G 1782
Hose diameter: Approximately 18 mm
Compressed air gun, commercially available
Protective goggles

Procedure

Fig 1: Identifying Noise Insulation

Courtesy of AUDI OF AMERICA, LLC

NOTE:

CLEAN WORKING CONDITIONS .

-- Remove the noise insulation -1 and 2-. Refer to "Underbody Trim" in EXTERIOR EQUIPMENT (CABRIOLET) .

WARNING:

Danger of eye injury.

Wear protective goggles.

-- Place the V.A.G 1782 under the separating joints.

Vehicles with an ATF Pipe Filter

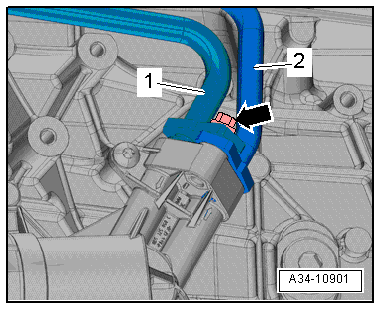

Fig 2: Identifying ATF Pipe -1- & Bolt -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -arrow- and then pull the ATF pipe -1- off the transmission.

NOTE:

Do not remove the ATF pipe going to the ATF pipe filter -2- if the ATF pipe filter is not going to be removed.

-- Remove the bolt -1-.

Fig 3: Identifying ATF Pipe Filter

Courtesy of AUDI OF AMERICA, LLC

-- Remove the circlip -arrow- and separate the ATF pipe from the ATF pipe filter.

NOTE:

Ignore -2- if the ATF pipe filter is not being removed.

Vehicles with an ATF Filter

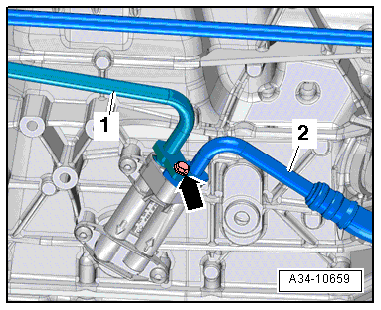

Fig 4: Identifying Bolt And ATF Pipes At Transmission

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -arrow- and then pull the ATF pipes -1- off the transmission.

All Vehicles

-- Clean the ATF pipes and the ATF with compressed air (maximum 10 bar (145 psi)).

NOTE:

If extremely dirty, ATF flows out when cleaning using compressed air, flush the ATF cooler and lines using clean ATF.

Vehicles with an ATF Pipe Filter

Fig 5: Identifying ATF Pipe Filter

Courtesy of AUDI OF AMERICA, LLC

-- Always replace the ATF pipe filter if the transmission is going to be replaced or if the ATF is very dirty. Refer to ATF PIPE FILTER .

Vehicles with an ATF Filter

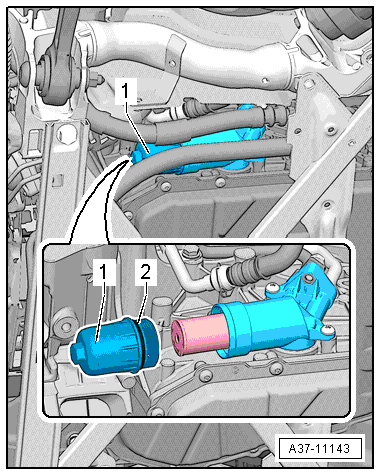

Fig 6: Identifying ATF Filter Cover

Courtesy of AUDI OF AMERICA, LLC

-- Replace the ATF filter if the ATF is very dirty. Refer to ATF FILTER .

NOTE:

The ATF filter is supplied with the new transmission.

Replace the ATF filter each time the ATF is replaced.

-- Install the ATF pipes. Refer to ATF PIPES .
