Input Shaft Seal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Audi S5, 2014 Audi S5, 2013 Audi S5, 2012 Audi S5, and 2011 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Pulling Hook T20143/2
Assembly Tool T40198
Guide Sleeve T40198/1
Engine and Transmission Holder VAS 6095

Procedure

Secure the transmission to the VAS 6095. Refer to SECURING ON ENGINE AND TRANSMISSION HOLDER .

-- Remove the flywheel. Refer to FLYWHEEL .

-- Remove the input shaft seal using T20143/2.

Fig 1: Using T20143/2 To Remove Input Shaft Seal

Courtesy of AUDI OF AMERICA, LLC

-- Install the T40198/1 on the input shaft.

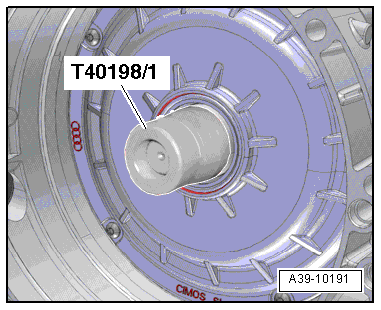

Fig 2: Identifying T40198/1 On Input Shaft, Installation

Courtesy of AUDI OF AMERICA, LLC

-- Lightly coat the outer circumference of the new shaft seal with oil.

-- Fill the space between the sealing- and dust lip half way with sealing grease;

-- Install the shaft seal on the guide sleeve.

Installed position: Open side of shaft seal faces transmission.

-- Install the shaft seal with the T40198 all the way. Be careful not to bend it.

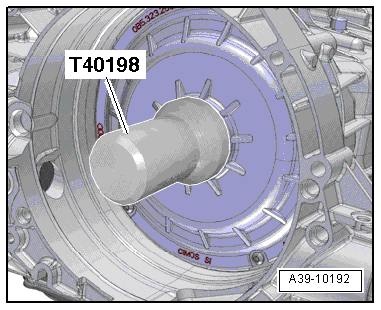

Fig 3: Using T40198 To Install Shaft Seal

Courtesy of AUDI OF AMERICA, LLC

-- Install the flywheel. Refer to FLYWHEEL .
