Center Differential Housing Overview, Bolted Driveshaft

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Audi S5, 2014 Audi S5, 2013 Audi S5, 2012 Audi S5, and 2011 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

REPAIR INFORMATION .

CLEAN WORKING CONDITIONS .

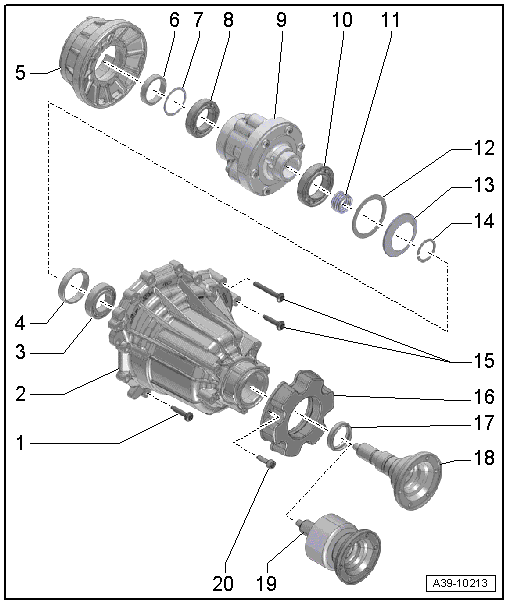

Fig 1: Center Differential Housing Overview, Bolted Driveshaft

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Aluminum bolts
- Quantity: 11
- Replace
- Tightening specification and sequence, refer to Fig 2
Housing
- For the center differential
- Removing and installing, refer to CENTER DIFFERENTIAL HOUSING AND CENTER DIFFERENTIAL, BOLTED DRIVESHAFT
Ball Bearing
- For the flange shaft
- Removing and installing, refer to REAR FLANGE SHAFT AND REAR FLANGE SHAFT SEAL AND BALL BEARING
Spacer Sleeve
- Removing and installing, refer to REAR FLANGE SHAFT AND REAR FLANGE SHAFT SEAL AND BALL BEARING
Gear Carrier
- Installed position: The tab must fit into the opening in the transmission intermediate housing
Spacer Sleeve
Adjusting Ring
Ball Bearing
- For the center differential
Center Differential
Ball Bearing
- For the center differential
Pressure Spring
Adjusting Ring
Plate Spring
- Installed position: The side curved outward faces the shaft seal -17-
Locking Ring
- For the flange shaft
- Removing and installing, refer to REAR FLANGE SHAFT AND REAR FLANGE SHAFT SEAL AND BALL BEARING .
Bolt
- Steel bolts
- Quantity: 2
- Replace
- Tightening specification and sequence, refer to Fig 2
Balance Weight
- Installed depending on the version
Shaft Seal
- Removing and installing, refer to REAR FLANGE SHAFT AND REAR FLANGE SHAFT SEAL AND BALL BEARING
Rear Flange Shaft
- Without vibration damper
- Removing and installing, refer to REAR FLANGE SHAFT AND REAR FLANGE SHAFT SEAL AND BALL BEARING
Rear Flange Shaft
- With vibration damper
- Removing and installing, refer to REAR FLANGE SHAFT AND REAR FLANGE SHAFT SEAL AND BALL BEARING
Bolt
- 20 Nm + 90° turn
- Replace

Fig 2: Tightening Specification And Sequence, Center Differential Housing - Bolted Driveshaft

Courtesy of AUDI OF AMERICA, LLC

-- Tighten bolts in 8 stages as follows:

Step	Bolts	Tightening Specification/Additional Turn
1.	Aluminum bolts -1-	8 Nm
2.	Aluminum bolts -2-	Tighten the bolt hand-tight.
3.	Aluminum bolts -1-	Loosen again and then install all the way hand-tight
4.	Aluminum bolts -3-	Tighten the bolt hand-tight.
5.	Steel bolts -4-	Tighten the bolt hand-tight.
6.	-1, 2, 3, 4-	10 Nm diagonally
7.	Steel bolts -4-	15 Nm
8.	-1, 2, 3, 4-	90° additional turn, diagonally
