Structure-Borne Sound Actuator -R214- - Tightening Specification

WARNING: This page is about a different car, the 2012 Audi S5, 2011 Audi S5, and 2010 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

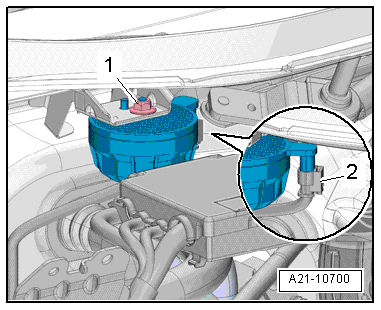

Fig 1: Structure-Borne Sound Actuator
GWWA21-10700Courtesy of AUDI OF AMERICA, LLC

-- Tighten the nut -1- to 5 Nm.
