Input Shaft Seal, Replacing: Procedure

WARNING: This page is about a different car, the 2014 Audi A5, 2013 Audi A5, 2012 Audi A5, and 2011 Audi A5. However, it is still accessible from the selected car via links, so may be relevant.

The transmission is removed.

NOTE:

Refer to REPAIR INFORMATION .

Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .

-- Remove the dual mass flywheel. Refer to DUAL MASS FLYWHEEL, REMOVING AND INSTALLING .

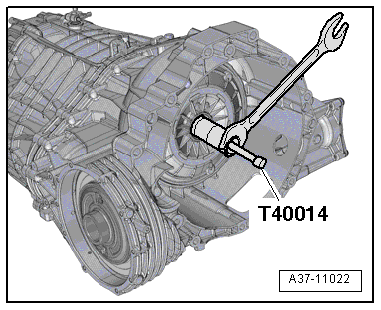

-- Rotate the :T40014 by hand into shaft seal until the tool has a good hold in the shaft seal. Then tighten the tool with an open end wrench.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The illustration shows a different transmission.

-- The shaft seal can be pulled out a short distance by screwing in the rear bolt of the puller.

-- Follow up with the open end wrench, so that the :T40014 engages securely again into the shaft seal and the shaft seal can be pulled out again by turning the screw.

-- Repeat the process until the shaft seal is completely pulled out.

Input shaft must be installed in order to install the shaft seal.

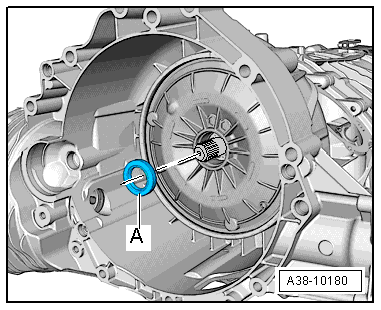

-- Coat the new shaft seal -A- with ATF.

Courtesy of AUDI OF AMERICA, LLC

-- Slide the shaft seal on the input shaft; do not touch the shaft splines during this.

Installation position: the open side of the seal faces the transmission.

NOTE:

The shaft seal can be damaged if it touches the input shaft splines.

Slide the shaft seal as far as possible into the cover so that it cannot bend when driving in.

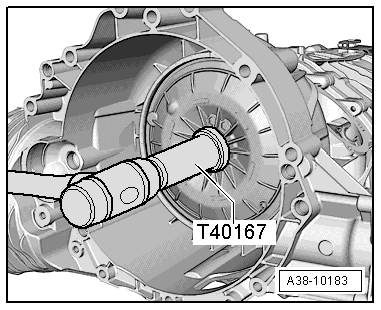

-- Mount the shaft seal using the :T40167 all the way without bending it.

Courtesy of AUDI OF AMERICA, LLC

-- Install the dual mass flywheel. Refer to DUAL MASS FLYWHEEL, REMOVING AND INSTALLING .

-- After installing the transmission, check the ATF level and correct. Refer to ATF LEVEL, CHECKING .
