Transmission, Removing, Vehicles With 2.0L TDI Engine (Pr-Th3, TM4): Procedure

WARNING: This page is about a different car, the 2014 Audi A5, 2013 Audi A5, 2012 Audi A5, and 2011 Audi A5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Battery

Courtesy of AUDI OF AMERICA, LLC

-- Position the front wheels so they are straight.

CAUTION:

Risk of damaging electronic components when disconnecting the battery.

Complete the steps for disconnecting the battery.

-- Disconnect the battery ground cable -2-. Refer to BATTERY, DISCONNECTING AND CONNECTING .

CAUTION:

Danger of damaging the engine cover.

Do not pull sharply on the engine cover or pull it to one side.

-- Generation I engine: carefully remove the engine cover from the retaining pins one after the other -arrows-.

Fig 2: Engine Covers

Courtesy of AUDI OF AMERICA, LLC

-- Generation II engine: carefully remove the engine cover from the retaining pins one after the other -arrows-.

Fig 3: Removing Engine Covers (Generation II Engine)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the noise insulations -1- and -2-. Refer to NOISE INSULATION, REMOVING AND INSTALLING / OVERVIEW - NOISE INSULATION .

Fig 4: Automatic Transmission Fluid Oil Pan

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the ATF lines at the engine -1- and transmission -2-.

Fig 5: Locating Bolts From ATF Pipe On Engine -1- & Transmission -2-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the plenum chamber bulkhead. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

-- Remove the connector -1- from the bracket and free up the wiring harness -2- with the Pry Lever:80-200 .

Fig 6: Identifying Connector -1- And Wiring Harness -2-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Lay a cloth under the separating point to prevent ATF from leaking out.

Fig 7: Identifying ATF Pipes And Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1- and -2- and remove the ATF pipes from the transmission, then secure them at the top.

-- Seal the open lines and connections with clean plugs from the Engine Bung Set:VAS6122 .

-- Remove the bolts -2 through 5- connecting the engine to the transmission. They are accessible from above.

Fig 8: Engine To Transmission Bolts (1 through 10)

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The bolts -3 and 5- also attach the wire bracket. Attach the bracket to the engine.

The bolt -2- attaches the starter to the transmission and has an additional spacer sleeve -arrow-.

Fig 9: Identifying Bolt & Spacer Sleeve

Courtesy of AUDI OF AMERICA, LLC

The bolt "item 2" in the preceding illustration can be reached by using a socket with a joint -arrow-.

Fig 10: Removing/Installing Bolt Using Socket With A Joint Tool

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -3-.

Fig 11: Identifying Connector -3-

Courtesy of AUDI OF AMERICA, LLC

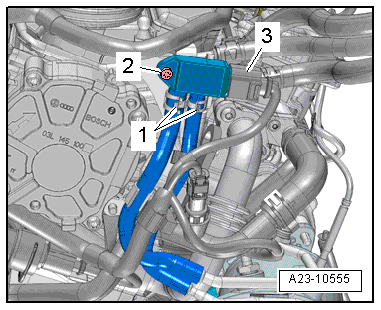

-- Remove the bolt -2- and free up the hoses -1- on the bracket.

-- Lay the Differential Pressure Sensor -G505- toward the rear.

-- Free up the wiring harness -arrow-.

Fig 12: Identifying Bracket And Nuts

Courtesy of AUDI OF AMERICA, LLC

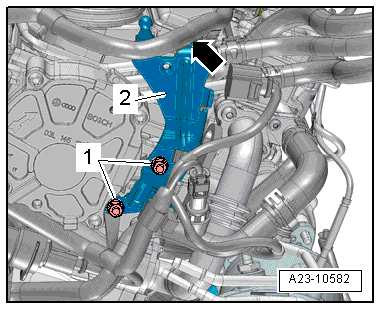

-- Remove the nuts -1- and the bracket -2-.

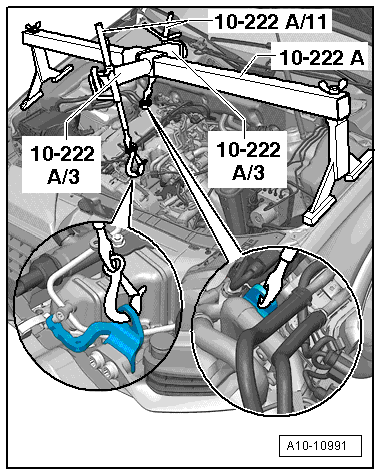

-- Place the Engine Support Bridge:10-222A on the left and right suspension strut tower, as shown in the illustration.

Fig 13: Identifying Engine Lifting Eyelets

Courtesy of AUDI OF AMERICA, LLC

-- Engage the Engine Support Bridge - Spindles :10-222A/11 on the engine lifting eyes.

-- Slightly pretension the engine with the spindles.

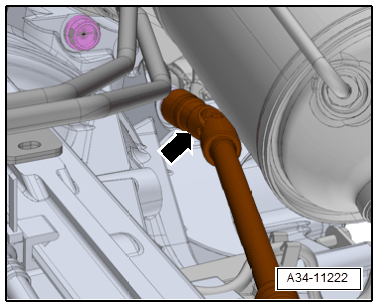

-- Remove the steering intermediate shaft from the steering gear and push them both upward. Refer to STEERING INTERMEDIATE SHAFT, REMOVING AND INSTALLING .

Fig 14: Identifying Steering Intermediate Shaft To Steering Gear Bolt

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

The suspension components could be damaged.

Do not rest the vehicle on its wheels if the subframe mount, the steering gear or the subframe crossbrace are not installed correctly.

ALL A4, A5 COUPE, A5 SPORTBACK:

Fig 15: Locating Power Steering Hydraulic Line

Courtesy of AUDI OF AMERICA, LLC

-- Remove the subframe crossbrace. Refer to SUBFRAME CROSSBRACE, COUPE AND SPORTBACK / SUBFRAME CROSSBRACE, CABRIOLET .

A5 CABRIOLET:

Fig 16: Diagonal Brace Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right bolts -1- and -2- and the stabilizer bar.

-- Remove the subframe crossbrace. Refer to SUBFRAME CROSSBRACE, COUPE AND SPORTBACK / SUBFRAME CROSSBRACE, CABRIOLET .

Fig 17: Identifying Bolt For Power Steering Hydraulic Fluid Line Bracket

Courtesy of AUDI OF AMERICA, LLC

All Vehicles:

Fig 18: Identifying Transmission Lower Cover

Courtesy of AUDI OF AMERICA, LLC

-- Remove the lower cover -1- from the transmission -arrow-.

-- Remove the cap from the vibration damper.

Fig 19: Identifying Offset Open-End Wrench

Courtesy of AUDI OF AMERICA, LLC

-- To loosen the flywheel bolts, counterhold the crankshaft with an offset open-end wrench -1- at the vibration damper.

NOTE:

When mounting, turn the crankshaft only in the direction of engine rotation -arrow-.

-- Remove the 3 flywheel bolts -arrow- while turning the crankshaft 120° further in the direction of engine rotation.

Fig 20: Identifying Clutch Module First Bolt Installation Location

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front exhaust pipe. Refer to OVERVIEW - MUFFLER [CAEB, CPMA, CAED, CPMB] / FRONT EXHAUST PIPE, REMOVING AND INSTALLING [CAEB, CPMA, CAED, CPMB] .

Fig 21: Identifying Front Muffler

Courtesy of AUDI OF AMERICA, LLC

-- Remove the retaining tab screw -2-.

Fig 22: Identifying Bolt -2-

Courtesy of AUDI OF AMERICA, LLC

-- Press the tab -1- in -direction of arrow B- and swivel it toward the rear -arrow A-.

NOTE:

The particulate filter remains installed.

-- Remove the left and right driveshaft cover -1- inside the wheel housing.

Fig 23: Driveshaft Cover -1-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the heat shield from the right driveshaft.

Fig 24: Drive Axle Heat Shield

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The illustration shows the installation position with the transmission removed.

-- Remove left and right driveshafts from transmission flange shafts.

-- Remove the ball socket -1- on the selector lever cable from the selector shaft lever using the Pry Lever:80-200 .

Fig 25: Disconnect Electrical Connector On Transmission By Rotating Twist Lock Counter-Clockwise

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2- from the cable mounting bracket.

-- Free up the selector lever cable.

NOTE:

Do not bend or kink the selector lever cable.

CAUTION:

There is a risk of destroying the transmission control module (Mechatronic) with static discharge.

Always "discharge" the static electricity before working with electric connectors. Do this by touching a grounded object, for example vehicle ground, the vehicle or the hoist.
Do not touch contacts in transmission connector with hands.

-- Turn the twist lock counter-clockwise -arrow- and disconnect the connector from the transmission.

Vehicles With Hydraulic Power Steering:

Fig 26: Identifying Hydraulic Line -1- At Steering Gear

Courtesy of AUDI OF AMERICA, LLC

-- Place the Used Oil Collection and Extraction Unit:SMN372500 under the separating point.

-- Remove the bolts -arrows-, disconnect the hydraulic oil line -1- from the steering gear and move it to the side.

-- Seal the open lines and connections with clean plugs from the Engine Bung Set:VAS6122 .

Vehicles With Electro-Mechanical Power Steering:

Fig 27: Identifying Connector

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the retainer -arrow-, push the release downward and disconnect the connector -2- from the Power Steering Control Module -J500-.

-- Free up the wiring harness.

NOTE:

Ignore -item 1-.

All Vehicles:

Fig 28: Engine To Transmission Bolts (1 through 10)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the starter bolt -1-.

-- Remove the starter from the transmission and leave it in the installation position.

-- Remove the remaining bolts -6 through 10- that attach the engine to the transmission.

-- Place the Engine and Gearbox Jack:VAS6931 with the Gearbox Support:T40173 under the transmission and secure with the tensioning strap -1- as shown in the illustration.

Fig 29: Mounting Transmission Onto T40173 And Secure It Using Tension Strap

Courtesy of AUDI OF AMERICA, LLC

-- Remove the tunnel crossmember. Refer to TUNNEL CROSSMEMBER, REMOVING AND INSTALLING .

-- Press the transmission off the engine and lower it carefully using the Engine and Gearbox Jack:VAS6931 .
