Driveshaft Heat Shield - Tightening Specification

WARNING: This page is about a different car, the 2014 Audi A5, 2013 Audi A5, 2012 Audi A5, and 2011 Audi A5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Drive Axle Heat Shield

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the right driveshaft heat shield bolts -1- to 23 Nm.

Transmission Mount to TFSI Engine

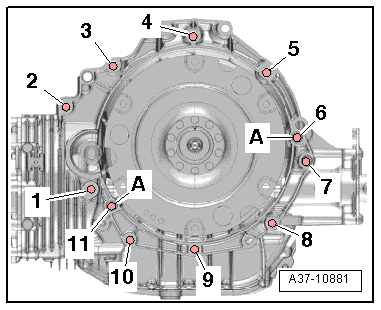

Fig 2: Checking If Alignment Sleeves -A- For Centering Engine/Transmission Are In Cylinder Block And Insert Them If They Are Not

Courtesy of AUDI OF AMERICA, LLC

Item

Bolt

1 ¹⁾

M 10x50 ²⁾

2 ³⁾ , 7

M 12 x 100 ⁴⁾⁵⁾

30 + 90°

3, 6

M 12 x 75 ⁴⁾⁵⁾

30 + 90°

4, 5

M 12 x 120 ⁴⁾⁵⁾

30 + 90°

8, 9, 10

M 10 x 75 ⁴⁾⁵⁾

15 + 90°

M 12 x 50 ⁴⁾⁵⁾

30 + 90°

Alignment sleeves for centering

¹⁾ Mount the auxiliary adapter
²⁾ Bolt strength rating 10.9 There is no limit to the number of times the steel bolt can be used again.
³⁾ Also secures that starter; with an additional spacer sleeve between the starter and the transmission.
⁴⁾ Audi A4 through VIN 8K-9A-066499, Audi A5 through VIN 8T-9A-007999: Replace the aluminum bolts.
⁵⁾ Audi A4 from VIN 8K-9A-066500, Audi A5 from VIN 8T-9A-008000: Aluminum bolts may be used two times. Refer to TRANSMISSION TIGHTENING SPECIFICATIONS - AUDI A4 FROM VIN 8K-9A-066500, AUDI A5 FROM VIN 8T-9A-008000: THE ALUMINUM BOLTS -2 THROUGH 11- MAY BE USED TWO TIMES. THEREFORE, THE BOLTS MUST BE MARKED WITH TWO NOTCHES "X" MADE BY A CHISEL AFTER THEY HAVE BE USED THE FIRST TIME -ARROW-. .

⁽¹⁾	To prevent damaging the bolts when marking them, do not clamp them in a vise. Insert the bolt using a 14 mm socket with a /₂ drive, which is inserted in to the vise, as illustrated.
