Wear, Checking On Bearing F, G And 10 For Disc Set II

WARNING: This page is about a different car, the 2014 Audi A5, 2013 Audi A5, 2012 Audi A5, and 2011 Audi A5. However, it is still accessible from the selected car via links, so may be relevant.

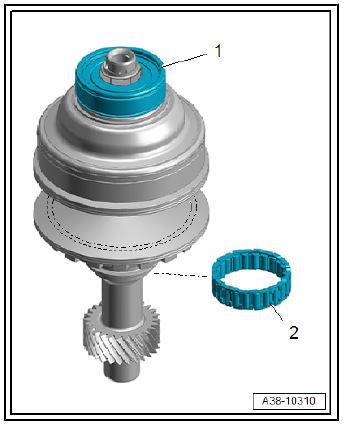

Bearing "F" for Disc Set "II", Checking

Courtesy of AUDI OF AMERICA, LLC

-- Check bearing "F" -2- for damage:

The roller bearing must not have any surface damage.
The bearing cage must not have any cracks or breaks.

-- To see if there is any damage on the roller bearings, run a finger nail over the entire running surface.

Very light wear grooves and damage that cannot be detected with the finger nail can be disregarded.
When there are wear grooves and damage that can be detected with the finger nail, then the bearing must be replaced.

-- Check the running surface on disc set "II" and in the outer race. Refer to DISC SET I AND II, REMOVING AND INSTALLING .

Bearing "G" for Disc Set "II", Checking

Courtesy of AUDI OF AMERICA, LLC

-- Check bearing "G" -2- for damage:

The balls and running surfaces must not have any damage or chips.

The ball bearing must not run >>roughly<< when rotating.

Bearing "10" for Disc Set "II", Checking

Courtesy of AUDI OF AMERICA, LLC

-- Check the bearing -arrow- for damage:

The roller bearing must not have any surface damage.
The bearing cage must not have any cracks or breaks.

-- To see if there is any damage on the roller bearings, run a finger nail over the entire running surface.

Very light wear grooves and damage that cannot be detected with the finger nail can be disregarded.
When there are wear grooves and damage that can be detected with the finger nail, then the bearing must be replaced.

-- Check the running surface on disc set "II". Refer to DISC SET I AND II, REMOVING AND INSTALLING .
