Suction Jet Pump, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Audi A5, 2013 Audi A5, 2012 Audi A5, and 2011 Audi A5. However, it is still accessible from the selected car via links, so may be relevant.

Mandatory Replacement Parts

Bolts - Suction jet pump

Disc set "I" and "II" are removed. Refer to DISC SET I AND II, REMOVING AND INSTALLING .

NOTE:

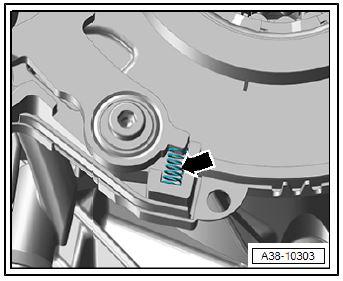

The spring -arrow- may pop out when removing the parking lock.

Courtesy of AUDI OF AMERICA, LLC

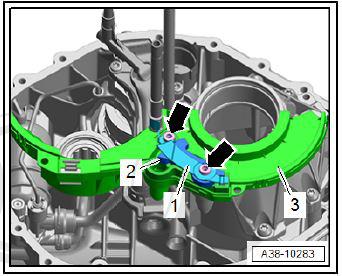

-- Remove the bolts -arrows- and the bracket -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Carefully pry out the parking lock -2-.

-- Remove the plastic pan -3-.

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

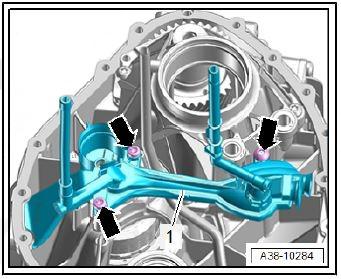

-- Carefully remove the suction jet pump -1-.
