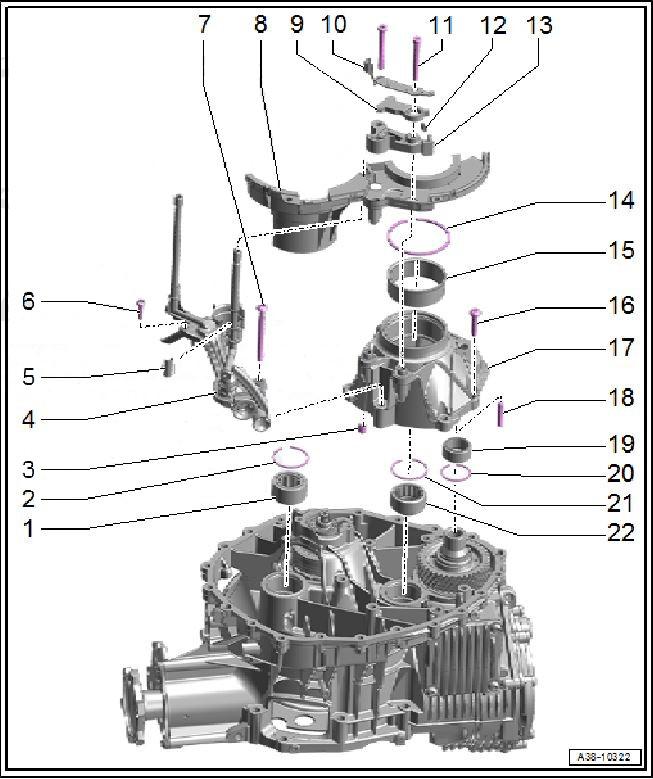

Overview - Suction Jet Pump, Bearing Flange
WARNING: This page is about a different car, the 2014 Audi A5, 2013 Audi A5, 2012 Audi A5, and 2011 Audi A5. However, it is still accessible from the selected car via links, so may be relevant.
- Bearing "C" for Disc Set "I"
- Removing and installing. Refer to BEARING C FOR DISC SET I, REMOVING AND INSTALLING .
- Circlip
- Alignment Sleeve
- Suction Jet Pump
- Removing and installing. Refer to SUCTION JET PUMP, REMOVING AND INSTALLING .
- Clip
- Bolt
- 5 Nm + 90°
- Bolt
- 15 Nm + 90°
- Always replace
- Plastic Pan
- Parking Lock Latch
- Parking Lock Bracket
- Bolt
- 15 Nm + 90°
- M8 X 70
- Parking Lock Spring
- Parking Lock
- Circlip
- Bearing Race for Bearing "F"
- Installing. Refer to BEARING FLANGE WITH BEARING F AND 11, REPLACING .
- Bolt
- 10 Nm + 90°
- Always replace
- M8 X 40
- Bearing Flange
- Alignment Pin
- Bearing "11" for Pinion
- Removing and installing. Refer to BEARING 10 FOR DISC SET II, REMOVING AND INSTALLING .
- Circlip
- Circlip
- Bearing "10" for Disc Set "II"
- Installing. Refer to BEARING FLANGE WITH BEARING F AND 11, REPLACING .
