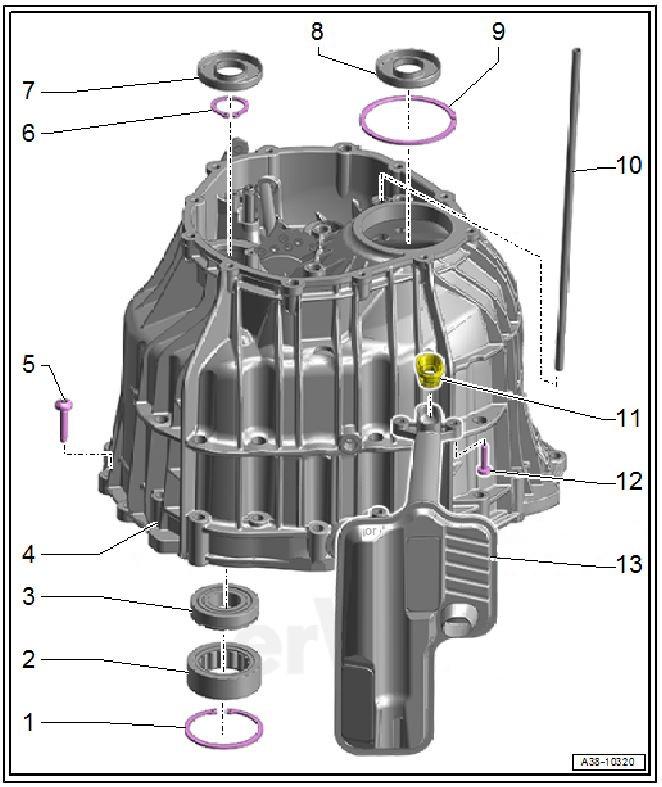

Overview - Intermediate Housing
WARNING: This page is about a different car, the 2014 Audi A5, 2013 Audi A5, 2012 Audi A5, and 2011 Audi A5. However, it is still accessible from the selected car via links, so may be relevant.
- Circlip
- Bearing "D" for Disc Set "I"
- Check for wear. Refer to WEAR, CHECKING ON BEARING D AND E .
- Removing and installing. Refer to BEARING D AND E FOR DISC SET I, REMOVING AND INSTALLING .
- Bearing "E" for Disc Set "I"
- Check for wear. Refer to WEAR, CHECKING ON BEARING D AND E .
- Removing and installing. Refer to BEARING D AND E FOR DISC SET I, REMOVING AND INSTALLING .
- Intermediate Housing
- Removing and installing. Refer to DISC SET I AND II, REMOVING AND INSTALLING .
- Bolt
- 10 Nm + 90°
- Tighten evenly clockwise
- Always replace
- Circlip
- For bearing "E"
- Selecting thickness. Refer to Tightening Specifications .
- Sensor Wheel for Disc Set "I"
- Replace after removing
- Removing and installing. Refer to DISC SET I AND II, REMOVING AND INSTALLING .
- Sensor Wheel for Disc Set "II"
- Replace after removing
- Removing and installing. Refer to DISC SET I AND II, REMOVING AND INSTALLING .
- Circlip
- For bearing "G"
- Selecting thickness. Refer to Tightening Specifications .
- Oil Pipe
- Seal
- Replace after removing
- For ATF filter
- Bolt
- 5 Nm + 90°
- ATF Filter
- Replace after removing
- Inner
