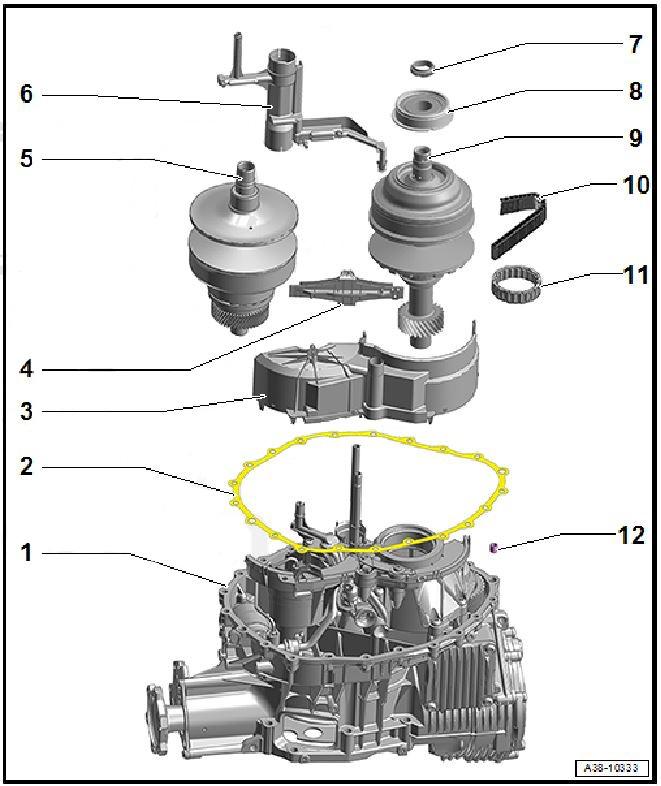

Overview - Disc Set I And II
WARNING: This page is about a different car, the 2014 Audi A5, 2013 Audi A5, 2012 Audi A5, and 2011 Audi A5. However, it is still accessible from the selected car via links, so may be relevant.
- Transmission Housing
- Seal
- Replace after removing
- Oil Guide Piece "I"
- Guide Rail
- Always replace
- Disc Set "I"
- Removing and installing. Refer to DISC SET I AND II, REMOVING AND INSTALLING .
- Oil Guide Piece "II"
- Disc Set "II"
- With bearing "G"
- Bearing "G" can only be replaced together with disc set "II".
- Chain
- Removing and installing. Refer to DISC SET I AND II, REMOVING AND INSTALLING .
- Bearing for Disc Set "II"
- Alignment Sleeve
- Quantity: 2
