Bearing Flange With Bearing F And 11, Replacing: Removing

-- Suction jet pump removed. Refer to SUCTION JET PUMP, REMOVING AND INSTALLING .

-- Remove the bolts -arrows- and the bearing flange -1-.

Courtesy of AUDI OF AMERICA, LLC

Assembling the New Bearing Flange:

Courtesy of AUDI OF AMERICA, LLC

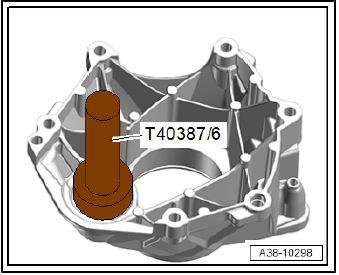

-- Press bearing "11" into the bearing flange using the :T40387/6  .

-- Install the circlip -arrow-

Courtesy of AUDI OF AMERICA, LLC

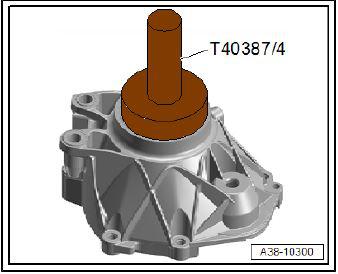

-- Press in the bearing race for bearing "F" using the :T40387/4  .

Courtesy of AUDI OF AMERICA, LLC

-- Install the circlip -arrow-

Courtesy of AUDI OF AMERICA, LLC

Removing Bearing "F" :

Courtesy of AUDI OF AMERICA, LLC

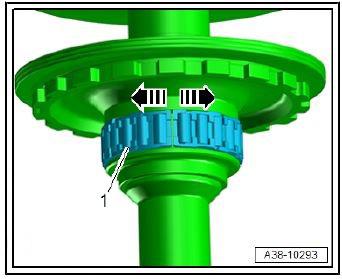

-- Carefully pull bearing "F" -1- apart at the separating groove in direction of -arrows- and remove from disc set "II".
