Bearing D And E For Disc Set I, Removing And Installing: Installing
WARNING: This page is about a different car, the 2014 Audi A5, 2013 Audi A5, 2012 Audi A5, and 2011 Audi A5. However, it is still accessible from the selected car via links, so may be relevant.

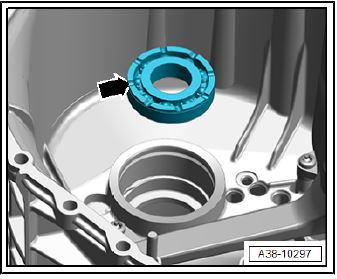

-- Note the installation position of bearing "E".
- The grooves -arrow- in the bearing race face upward toward the tool.

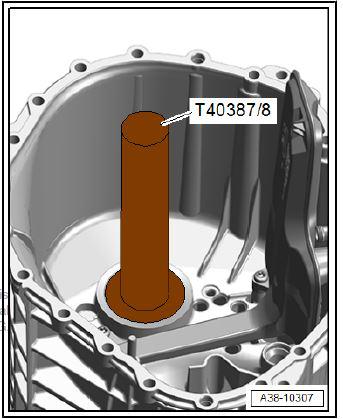

-- Press in bearing "E" for disc set "I" with the :T40387/8 until it stops.

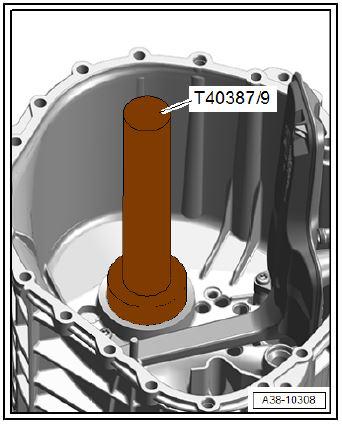

-- Press in bearing "D" for disc set "I" with the :T40387/9 until it stops.
-- Install the circlip -arrow- with locking ring pliers.
