Bearing C For Disc Set I, Removing And Installing: Removing
WARNING: This page is about a different car, the 2014 Audi A5, 2013 Audi A5, 2012 Audi A5, and 2011 Audi A5. However, it is still accessible from the selected car via links, so may be relevant.
- Disc set "I" and "II" are removed. Refer to DISC SET I AND II, REMOVING AND INSTALLING .
-- Remove the bolts -arrows- from the ATF filter -1-.
-- Remove the ATF filter from the transmission housing.
-- Remove the bolt -1- and the clamp -2-.
-- Remove the oil pipe -3- from the valve unit -4- and push to the side.
-- Remove the bolts -arrows- and remove the valve unit.
-- Pry out the circlip -arrow- with a small screwdriver.

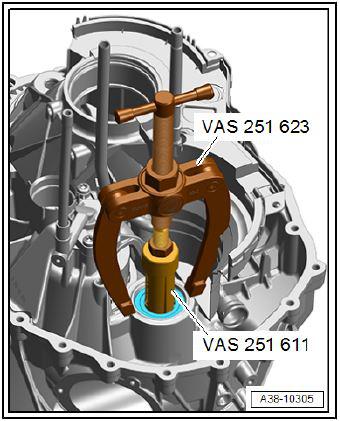

-- Remove the bearing "C" for disc set "I" with :VAS251611 and :VAS251623 .
