Bearing C For Disc Set I, Removing And Installing: Installing
WARNING: This page is about a different car, the 2014 Audi A5, 2013 Audi A5, 2012 Audi A5, and 2011 Audi A5. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

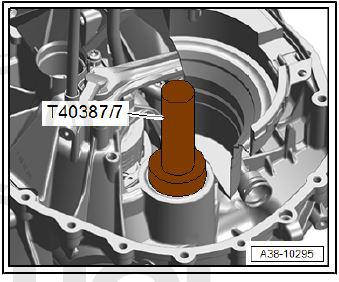

-- Press in bearing "C" for disc set "I" with the :T40387/7 until it stops.

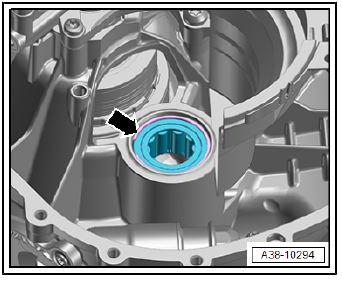

-- Mount the circlip -arrow-.

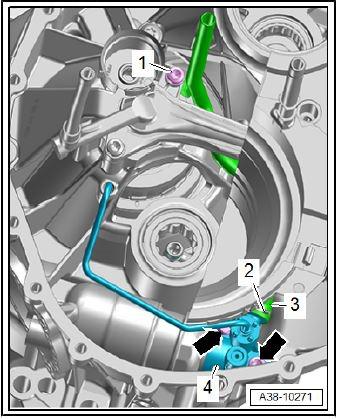

-- Bring the valve unit -4- into its installation position and tighten the bolts -arrows-.
-- Press the oil pipe -3- on the valve unit and secure with the clamp -2-.
-- Tighten the bolt -1-.
-- Install the ATF filter. Refer to ATF FILTER, REMOVING AND INSTALLING .
