Bearing 10 For Disc Set II, Removing And Installing: Removing
WARNING: This page is about a different car, the 2014 Audi A5, 2013 Audi A5, 2012 Audi A5, and 2011 Audi A5. However, it is still accessible from the selected car via links, so may be relevant.
-- Suction jet pump removed. Refer to SUCTION JET PUMP, REMOVING AND INSTALLING .

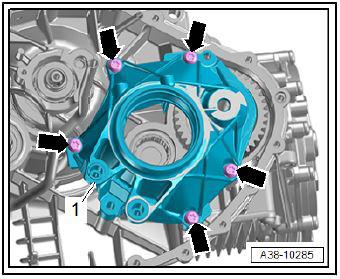

-- Remove the bolts -arrows- and the bearing flange -1-.

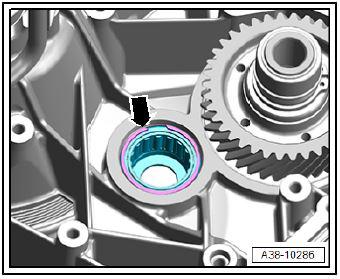

-- Pry out the circlip -arrow- with a small screwdriver.

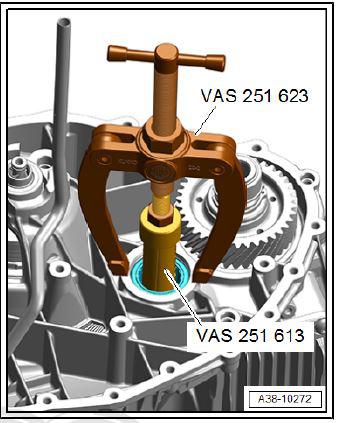

-- Remove bearing "10" for disc set "II" from the transmission housing using the :VAS251613 and :VAS251623 .
