Overview - Reverse Gear Clutch

WARNING: This page is about a different car, the 2014 Audi A5, 2013 Audi A5, 2012 Audi A5, and 2011 Audi A5. However, it is still accessible from the selected car via links, so may be relevant.

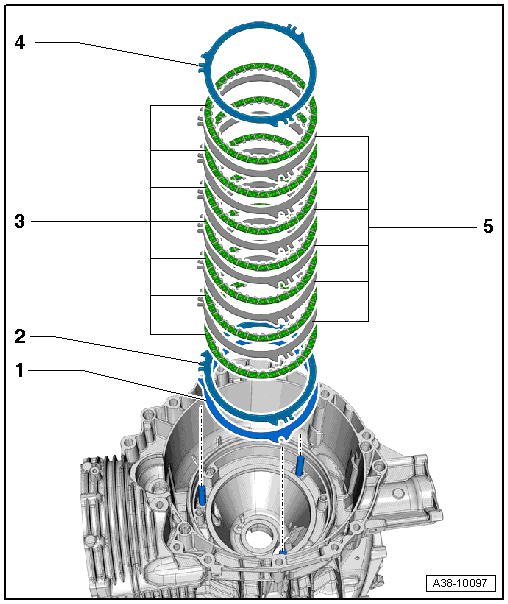

Fig 1: Exploded View Of Reverse Gear Clutch

Courtesy of AUDI OF AMERICA, LLC

Corrugated Spring Washer
- Always replace
Lower Adjustment Plate
- Always replace
- Determine thickness "E₁ ". Refer to REVERSE GEAR CLUTCH, REMOVING AND INSTALLING, SELECTING ADJUSTMENT PLATES .
- The thickness of the lower adjustment plate "E₁ " must be at least 2.15 mm
Lining Plate
- Always replace
- Quantity: 6
Upper Adjustment Plate
- Always replace
- Determining the thickness "E₂ ". Refer to REVERSE GEAR CLUTCH, REMOVING AND INSTALLING, SELECTING ADJUSTMENT PLATES
Outer Clutch Plate
- Always replace
- Quantity: 5
