Alignment Of Lining Plates:

WARNING: This page is about a different car, the 2014 Audi A5, 2013 Audi A5, 2012 Audi A5, and 2011 Audi A5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

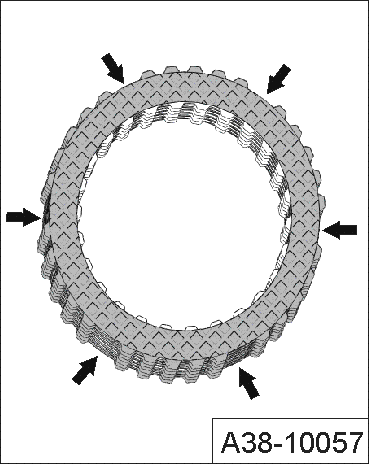

The lining plates must be installed with the same alignment, thus the places without outside teeth -arrows- must always lie on top of each other. Only in this way is the adjustment correct; mark the input shaft cylinder for correct installation, if necessary.

-- Insert the determined upper adjustment plate -4- in the input shaft cylinder -A-.

Courtesy of AUDI OF AMERICA, LLC

-- Lastly, insert the corrugated spring washer -5-.

-- Press the pistons -1- all the way into the press plate -2-.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

The inner running and sealing surfaces -arrow A- of the press plate and pistons -arrow C- must not touch the shaft during removal and installation.
The running and sealing surfaces must not show the smallest signs of damage such as scratches or grooves as a result of removing or installing.
If damaged, the pressure plate of the piston must be replaced.

-- Carefully guide the press plate -1- with pistons -2- downward over shaft -3-.

Courtesy of AUDI OF AMERICA, LLC

The inner running surfaces of the press plate -1- and pistons -2- must not touch the shaft.

-- Push the press plate with the piston evenly all the way in the input shaft.

Checking Air Play with the :T40102 .

Courtesy of AUDI OF AMERICA, LLC

-- Insert both :T40102 under the press plate -A-.

-- A second technician must push the press plate -A- downward all the way in direction of -arrow 1- with :VW416B .

-- Guide both :T40102 circularly in the direction of -arrow- back and forth under the press plate.

Both :T40102 must be aligned when guided in.
The :T40102 must not be tilted.
Entire circular area must be checked.
Both :T40102 must always move freely without any resistance.

If the :T40102 cannot be guided in the direction of -arrow- without blocking:

-- Repeat the input shaft adjustment. Refer to INPUT SHAFT, ADJUSTING BY DETERMINING AIR GAP .

CAUTION:

The air gap must pass the inspection with the :T40102 , otherwise the transmission will have start-up problems after reinstallation.

If the :T40102 can be guided in the direction of -arrow- without blocking:

-- Install the input shaft cover. Refer to INPUT SHAFT COVER, REMOVING AND INSTALLING .

-- Install the input shaft. Refer to INPUT SHAFT, REMOVING AND INSTALLING .

-- Install the input shaft seal. Refer to INPUT SHAFT SEAL, REPLACING .

-- Fill the ATF after installing the transmission. Refer to ATF, FILLING FOR ATF FLUSH .
