Input Shaft, Checking For Wear

WARNING: This page is about a different car, the 2014 Audi A5, 2013 Audi A5, 2012 Audi A5, and 2011 Audi A5. However, it is still accessible from the selected car via links, so may be relevant.

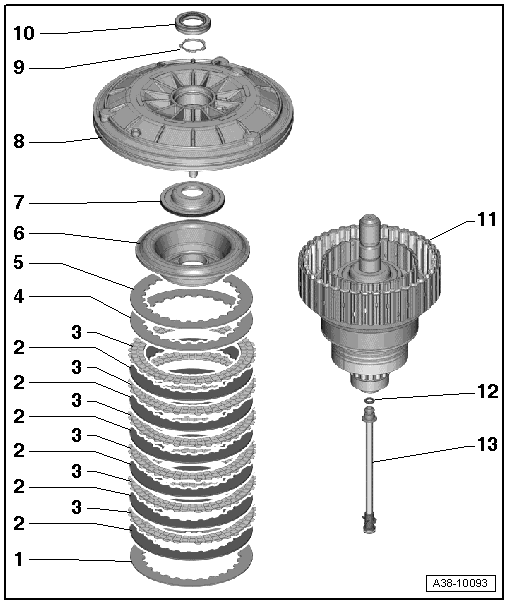

Fig 1: Exploded View Of Input Shaft (Checking For Wear)

Courtesy of AUDI OF AMERICA, LLC

3 - Lining Plates
6 - Press Plate
- Checking for wear. Refer to appropriate service information. .
7 - Piston
- Checking for wear. Refer to appropriate service information. .
8 - Cover
- For the input shaft
- Checking. Refer to appropriate service information. .
10 - Ball Bearing
- Replace the ball bearing after removing the input shaft cover
- For the input shaft
11 - Input Shaft
- Check running and sealing surfaces for wear. Refer to appropriate service information. .
- Checking for signs of wear on the lining plates. Refer to appropriate service information. .
13 - Oil Pipe
- Checking for wear. Refer to appropriate service information. .

Courtesy of AUDI OF AMERICA, LLC

-- Remove the piston -1- from the press plate -2-.

Check the Press Plate -2- :

-- Check the press plate running and sealing surfaces -arrow A- for wear.

-- Check the press plate running and sealing surfaces -arrow D- for wear.

If running or sealing surfaces -arrow A- show grooves, scratches or scoring, press plate -2- must be replaced.
If running or sealing surfaces -arrow D- show grooves, scratches or scoring, the press plate -2- and the piston -1- must be replaced.

Checking the Piston -1- :

-- Check the seal -arrow B- on the outer edge of the piston -1- for damage.

-- Check the running surface -arrow C- on the inner edge of the piston -1- on the shaft.

If the gasket -arrow B- is damaged or the piston running surface -arrow C- shows grooves, scratches, scoring or uneven thickness from wear, then piston -1- must be replaced.

Courtesy of AUDI OF AMERICA, LLC

-- Check the input shaft running and sealing surfaces -arrow A- for wear.

NOTE:

The shaft seal in the input shaft cover seals on this sealing surface -arrow A-.

Light wear grooves from the shaft seal are normal.

-- Check the running surface -arrow B- on the input shaft ball bearing inside the input shaft cover for wear.

-- Check the shaft seal -arrow C- on the input shaft for damage.

If the shaft seal -arrow C- is damaged or the running surfaces -arrow B- or -arrow A- on the input shaft show severe scoring or grooves, then the entire input shaft must be replaced.

Courtesy of AUDI OF AMERICA, LLC

-- Check the inner edge of the input shaft cylinder for wear grooves from the lining plates -arrows-.

If there are wear grooves on the inner edge of the input shaft cylinder from the lining plates -arrows-, then the entire input shaft must be replaced.

Courtesy of AUDI OF AMERICA, LLC

-- Check the seal -1- on the oil pipe for damage.

The seal must have a gap -arrow B-.
If the gap -arrow B- is completely closed, the oil pipe must be replaced.

-- Check the running surfaces -arrows- and rotor blades -arrow A- on the oil pipe for wear and damage.

If the seal -1- or the rotor blades -arrow A- are damaged or the contact surfaces -arrow- show deep scoring or grooves, then the oil pipe must be replaced.
The O-ring -2- must be replaced.

-- Check the contact surface on the oil pipe in the suction jet pump

Courtesy of AUDI OF AMERICA, LLC

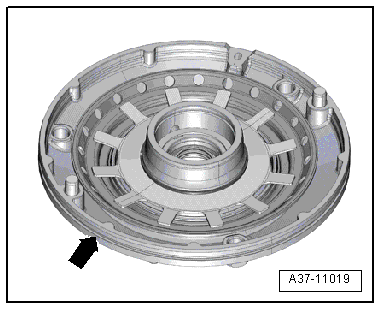

-- Check the contact surface on the cover -arrow- and the cover for damage.

The contact surface must not show any damage.
The input shaft cover must not be broken or cracked.

-- If the contact surface or the cover are damaged, then replace the input shaft cover.
