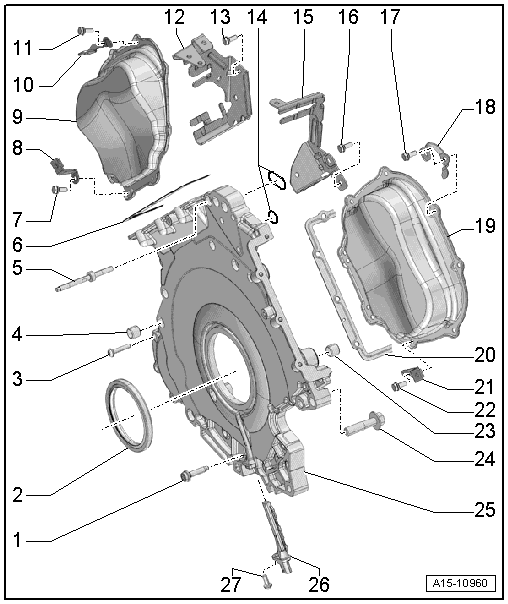

Overview - Timing Chain Cover: Notes
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- Tightening specification and sequence. Refer to Figure.
- Shaft Seal
- For the crankshaft on the transmission side
- Replace. Refer to CRANKSHAFT SEAL, REPLACING, TRANSMISSION SIDE .
- Bolt
- Tightening specification and sequence. Refer to Figure.
- Alignment Sleeve
- Quantity: 2
- Threaded Pin
- Tightening specification -item 13) OVERVIEW - OIL FILTER HOUSING/OIL PRESSURE SWITCH .
- Left Cylinder Head Gasket
- Bolt
- Replace
Tightening specification and sequence. Refer to Figure.
- Replace
- Bracket
- For wiring harness
- Left Timing Chain Cover
- Removing and installing. Refer to LEFT AND RIGHT TIMING CHAIN COVERS, REMOVING AND INSTALLING .
- Bracket
- For wiring harness
- Bolt
- Replace
Tightening specification and sequence. Refer to Figure.
- Replace
- Bracket
- For wiring harness
- Bolt
10 Nm
- Seal
- Replace
- Bracket
- For wiring harness
- Bolt
10 Nm
- Bolt
- Replace
- Tightening specification and sequence. Refer to Figure.
- Bracket
- For wires
- Right Timing Chain Cover
- Removing and installing. Refer to LEFT AND RIGHT TIMING CHAIN COVERS, REMOVING AND INSTALLING .
- Right Cylinder Head Gasket
- Bracket
- For the heat shield
- Bolt
- Replace
- Tightening specification and sequence. Refer to Figure.
- Alignment Sleeve
- Quantity: 2
- Bolt
- Tightening specification. Refer to Figure.
- Lower Timing Chain Cover
- Removing and installing. Refer to LOWER TIMING CHAIN COVER, REMOVING AND INSTALLING .
- Engine Speed Sensor -G28-
- Removing and installing. Refer to Engine Speed Sensor -G28-, REMOVING AND INSTALLING .
- Bolt
- Tightening specification. Refer to Engine Speed Sensor -G28-, REMOVING AND INSTALLING .
