Lower Timing Chain Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Engine is secured to the Engine and Gearbox Bracket:VAS6095A . Refer to ENGINE, SECURING TO Engine and Gearbox Bracket .

NOTE:

During installation, all cable ties must be installed at the same location.

-- Remove the drive plate. Refer to DRIVE PLATE, REMOVING AND INSTALLING .

-- Remove the compressor. Refer to SUPERCHARGER, REMOVING AND INSTALLING .

-- Remove the oil filter housing. Refer to OIL FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove the upper coolant pipe. Refer to UPPER COOLANT PIPE, REMOVING AND INSTALLING .

-- Remove the left and right timing chain covers. Refer to LEFT AND RIGHT TIMING CHAIN COVERS, REMOVING AND INSTALLING .

NOTE:

Ignore -1 and 2-.

-- Disconnect the connector -3- from the Engine Speed Sensor -G28-.

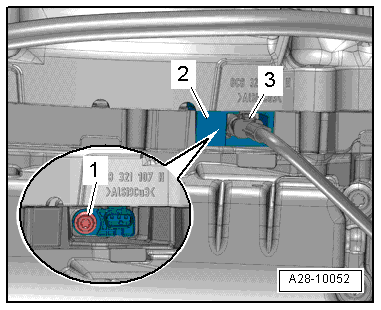

Fig 1: Identifying RPM Sensor, Cover And Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows-.

-- Loosen and remove the bolts -1 through 10- in a diagonal sequence.

-- Carefully loosen the lower timing chain cover from the bonding and remove it.

-- Press the transmission side of the crankshaft shaft seal out of the lower timing chain cover.

Fig 2: Identifying Lower Timing Chain Cover Bolt Loosening And Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
