Left And Right Timing Chain Covers, Removing And Installing: Removing:

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

During installation, all cable ties must be installed at the same location.

The cover sealant has strong adhesive properties. Pry off the cover slowly and evenly so that it does not bend.

-- Remove the engine compartment cover. Refer to ENGINE COMPARTMENT COVER, REMOVING AND INSTALLING .

-- Remove the rear engine cover -2- upward.

Fig 1: Engine Cover -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the affected secondary air injection combination valve. Refer to left LEFT SECONDARY AIR INJECTION COMBINATION VALVE, REMOVING AND INSTALLING , and right RIGHT SECONDARY AIR INJECTION COMBINATION VALVE, REMOVING AND INSTALLING .

Left Timing Chain Cover

-- Remove the bolts -1 through 8- and the bracket -arrows A and B-.

-- Carefully remove the left timing chain cover from the bonding.

Fig 2: Identifying Left Timing Chain Cover Bolt Loosening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Right Timing Chain Cover

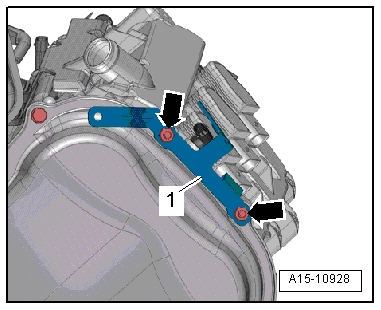

Fig 3: Bracket -1- Nuts -Arrows-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nuts -arrows- and push the bracket -1- with the wiring harness to the side.

-- Remove the bolts -1 through 8-.

-- Carefully remove the right timing chain cover from the bonding.

Fig 4: Identifying Right Timing Chain Cover Bolt, Tightening/Loosening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
