Valve Timing, Checking
-- Remove the cylinder head covers. Refer to left side LEFT CYLINDER HEAD COVER, REMOVING AND INSTALLING and right side RIGHT CYLINDER HEAD COVER, REMOVING AND INSTALLING .
-- Position the crankshaft at "TDC" in the direction of engine rotation -arrow- using the Crankshaft Socket:T40058 and offset open-end wrench.

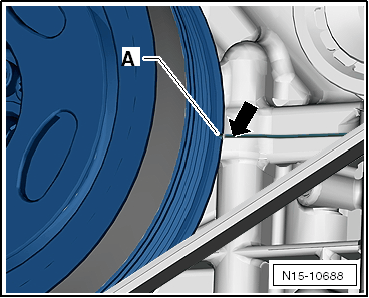

- The notch -A- must align with the joint -arrow-.
- The threaded holes -arrows- in the camshafts must face upward.
If it is accidentally rotated beyond "TDC", rotate it back approximately 30° and set it to "TDC" again.
-- Remove the locking bolt -arrow- for the "TDC" marking crankshaft from the cylinder block.
-- Install the Crankshaft Locking Pin:T40069 in the hole and tighten to 20 Nm.
- The Crankshaft Locking Pin:T40069 must engage in the securing hole on the crankshaft -1-.

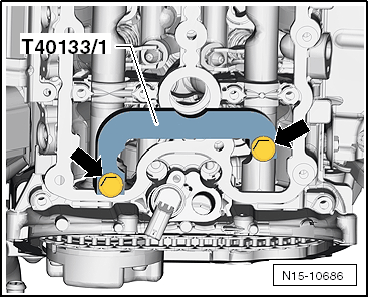

-- The camshaft for cylinder bank 1 must be secured in "TDC" using the Camshaft Clamp:T40133/1 .

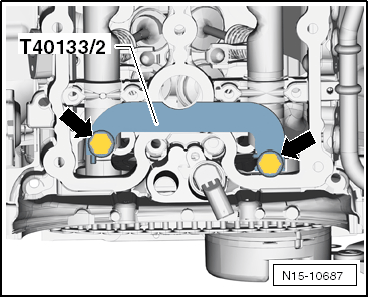

-- The camshaft for cylinder bank 2 must be secured in "TDC" using the Camshaft Clamp:T40133/2 .
If the camshafts cannot be secured, the valve timing must be adjusted.
