Crankcase Ventilation Pipes, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

During installation, all cable ties must be installed at the same location.

-- Remove the compressor. Refer to SUPERCHARGER, REMOVING AND INSTALLING .

-- Press the release buttons and remove the crankcase ventilation pipes -arrows- from the cylinder head covers.

-- Remove the bolt -1- and the connections for the crankcase ventilation hoses.

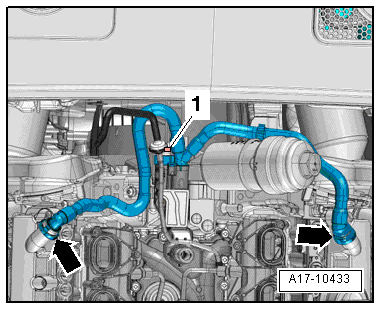

Fig 1: Removing Crankcase Ventilation Hoses
GWWA17-10433Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
