Overview - Clutch

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

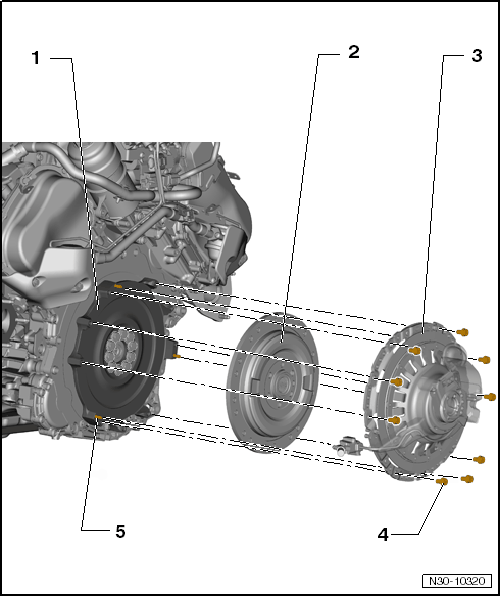

Fig 1: Exploded View Of Clutch

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Flywheel
- Make sure it fits securely on the centering pins
- There must not be no grooves, oil or grease on the clutch plate contact surface.
- Removing and installing. Refer to appropriate service information. .
Clutch Plate
- Allocation. Refer to the Parts Information.
- The "transmission side" label, if present, points toward the pressure plate.
- Lightly grease the splines
  NOTE:
  Clean the input shaft splines and the hub splines, remove corrosion and apply only a very thin coating of Grease for Clutch Disc Shaft Splines:G 000 100 onto the input shaft splines. Then move the clutch plate back and forth on the input shaft until the hub moves freely on the shaft. Remove any excess grease.
Pressure Plate
- Removing and installing. Refer to CLUTCH, REMOVING AND INSTALLING .
  NOTE:
  The pressure plates are corrosion-protected and lubricated. Only the running surfaces may be cleaned, otherwise the service life of the clutch will be shortened considerably.
Bolt
- 20 Nm + 90° turn
- Loosen and tighten the bolts in small steps diagonally
Centering Pins
- Make sure they fit correctly
