Installation Location Of The Bleeder Valve

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

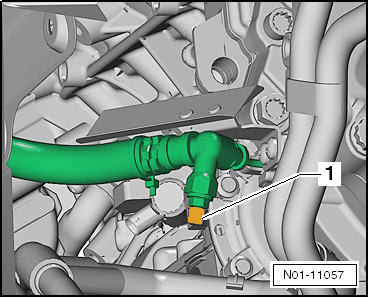

Fig 1: Installed Location Of Breather Valve
GWWN01-11057Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The bleeder valve is located between the engine and the drive motor.

-- Remove dust cap -1- from the bleeder valve and connect the bleeder hose.
