Actuator, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the left front wheel.

-- Remove the left front wheel housing liner.

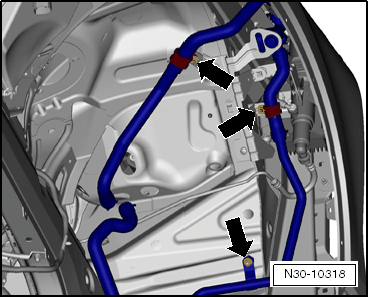

-- Remove the coolant hose brackets -arrows- and move the coolant hose to the side.

Fig 1: Identifying Coolant Hose Bracket Bolts -Arrows-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Clamp off the return hose with :3094 -arrow-.

Fig 2: Identifying Hose/Line Assemblies -A To B- And Clips -Arrows-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pry out the clamps -arrows- with a screwdriver and disconnect lines -A and B- from the actuator. Seal the lines with suitable plugs.

NOTE:

Immediately wipe off any brake fluid that has leaked out.

-- Disconnect the harness connector from the actuator.

-- Remove the bolts -arrows- and the actuator.

Fig 3: Identifying Bolts -Arrows- To Actuator

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
