Actuator, Removing And Installing: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Note the following:

Replace the O-rings for the pipe/hose lines.

-- Install the actuator and tighten the bolts -arrows-.

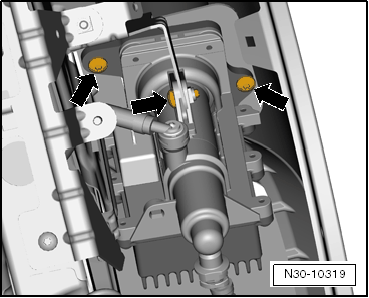

Fig 1: Identifying Bolts -Arrows- To Actuator

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tightening specification -item 7- OVERVIEW - List Item:Bolt on Decoupler Pressure Actuator -N511-

-- Insert the hose/line assembly -A and B- all the way into the actuator and secure it with the clamps -arrows-.

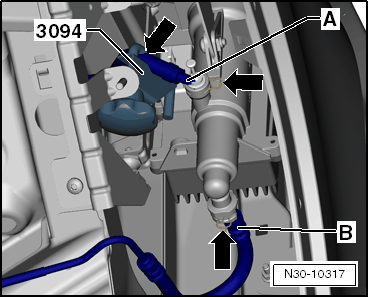

Fig 2: Identifying Hose/Line Assemblies -A To B- And Clips -Arrows-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Bleed the clutch mechanism. Refer to HYDRAULIC SYSTEM, BLEEDING .

Tightening Specification
Coolant hose bracket	10 Nm
