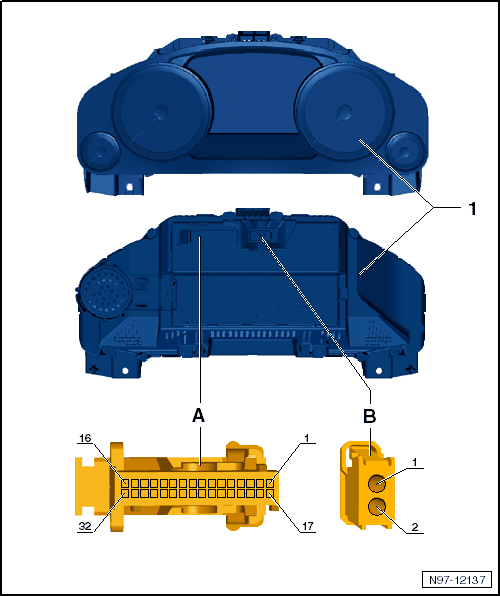

Description Of Rear Side Of Instrument Cluster
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Do not disassemble instrument cluster. In the event of malfunctions, replace complete instrument cluster.
- A
- Connector 32-pin
- Connector assignment. Refer to CONNECTOR ASSIGNMENT ON INSTRUMENT CLUSTER .
- B
- Connector 2-pin
- Connector assignment. Refer to CONNECTOR ASSIGNMENT ON INSTRUMENT CLUSTER .
