Oil Check Valve

WARNING: This page is about a different car, the 2012 Volkswagen Touareg and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

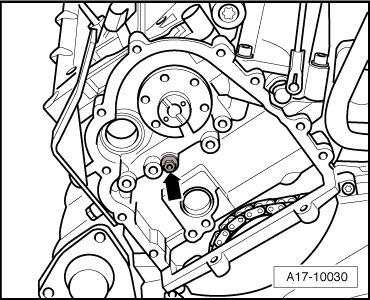

Fig 1: Identifying Oil Check Valve

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The oil check valves are located on the rear of the face side of the left or right cylinder head -arrow-. They can be accessed after removing the left or right camshaft timing chain from the camshaft. Refer to CAMSHAFT TIMING CHAIN, REMOVING FROM CAMSHAFT .

Tightening Specification: 25 Nm.
