Overview - Cylinder Head Cover: Notes

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

The illustration shows the cylinder head cover for cylinder bank 2 (the left).

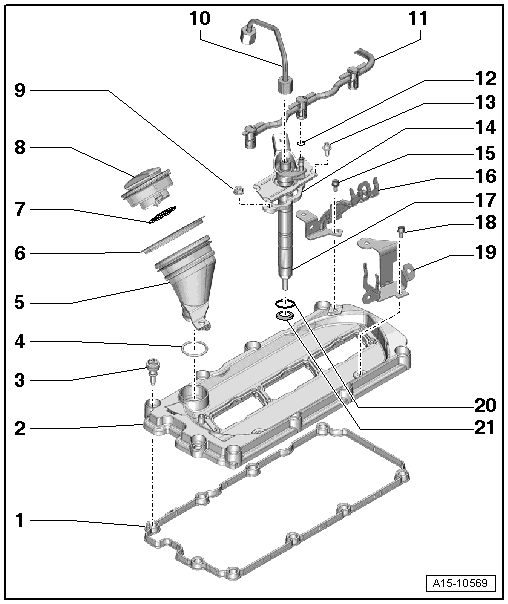

Fig 1: Cylinder Head Cover Overview
GWWA15-10569Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Cylinder Head Cover Gasket
    • Replace if damaged or leaking
  2. Cylinder Head Cover
  3. Special Bolt
    • 9 Nm
    • Replace if damaged or leaking
    • Tighten diagonally starting from the inside and working toward the outside in steps
  4. O-Ring
    • Replace
  5. Oil Filler Neck
    • To remove, lift the tab, turn the oil filler neck to the left and remove it.
  6. Seal
    • Replace if damaged or leaking
  7. Seal
    • Replace if damaged or leaking
  8. Cap
  9. Hex Collar Bolt
    • 10 Nm
    • For the tension clamp
  10. High Pressure Line
    • Follow the guidelines for clean working conditions. Refer to CLEAN WORKING CONDITIONS AND FUEL SYSTEM WORK INSTRUCTIONS .
    • Mark the assignment of the high pressure lines to the injector units.
    • Do not change the angles of the high pressure lines
    • Tighten the high pressure lines on the high pressure reservoirs with a 19 mm wrenchFigure.
    • Tighten the high pressure lines on the high pressure reservoirs with a 14 mm wrenchFigure.
    • Tighten the high pressure lines on the injector units. Refer to Figure.
  11. Fuel Return Line
  12. O-Ring
    • Replace
  13. Bolt
    • 5.5 Nm
    • Injector unit cover to cylinder head cover
  14. Tension Clamp
    • Injectors and tensioning brackets that have been removed and are being reinstalled may only be installed in the same cylinder.
    • If the injector unit (injector) is being replaced, then the tension bracket must also be replaced.
  15. Bolt
    • 9 Nm
  16. Bracket
    • For the connectors
    • Different versions, allocation Parts Information
  17. Injector
  18. Bolt
    • 9 Nm
    • Installed only on vehicles with engine code CATA
  19. Bracket
    • For the electrical wiring harness
    • Installed only on vehicles with engine code CATA
  20. O-Ring
    • Replace
  21. Copper Ring
    • Replace
