Camshaft Timing Chain, Removing And Installing: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Crankshaft Holder 3242

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tightening specifications. Refer to OVERVIEW - LEFT CAMSHAFT TIMING CHAIN .
Secure crankshaft -1- in "TDC" position using Locking Pin For Crankshaft :T40237 .
The timing mechanism drive chain is installed. Refer to BALANCE SHAFT AND OIL PUMP CHAIN, REMOVING AND INSTALLING .

NOTE:

Replace the locking bolt seal for the "TDC" marking.

Replace the bolts that were tightened with an additional turn.

CAUTION:

Risk of damaging valves and piston crowns.

If camshafts are rotated, crankshaft may not rest with any piston at "TDC".

-- Check whether camshafts of both cylinder heads stand in "TDC" position.

Fig 2: Identifying Check Of Camshafts For Both Cylinder Heads In TDC Position And Adjustment Pin T40060

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

It must be possible to secure the camshafts with the Camshaft Adjustment Pins:T40060 .
The pin -arrow- in the Camshaft Adjustment Pins:T40060 must be perpendicular to the center line of the camshaft on cylinder bank 1 (right).

The pin -arrow- in the Camshaft Adjustment Pins:T40060 must be perpendicular to the center line of the camshaft on cylinder bank 2 (left).

Fig 3: Identifying Perpendicular Pin -Arrow- On Adjustment Pin T40060
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Camshaft Adjustment Pins:T40060 from both camshafts.

Fig 4: Identifying Adapter T40061 And Adjustment Pin T40060

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

Risk of damaging valves and piston crowns.

If camshafts are rotated, crankshaft may not rest with any piston at "TDC".

NOTE:

If the camshafts are not secured, it is possible to correct them slightly with the Camshaft Correction Tool:T40061 by installing the camshaft chain sprocket on the camshaft.

-- Install the left camshaft timing chain with the camshaft chain sprocket, the guide rail and the tensioning rail.

Fig 5: Identifying Left Camshaft Timing Chain, Camshaft Chain Sprocket, Guide Rail And Tensioning Rail

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The slots in the camshaft chain sprocket must be at the middle position in relation to the threaded holes in the camshaft.

-- Tighten the bolts -1 and 3- for the guide rail and the tensioning rail.

-- Install both camshaft chain sprocket bolts -2- loosely.

It must still be possible to rotate the camshaft chain sprocket on the camshaft and it must not tip.

-- Secure the left camshaft with the Camshaft Adjustment Pins:T40060 .

The bolt -arrow- in the Camshaft Adjustment Pins:T40060 must be perpendicular to the center axis of the camshaft.

-- Pull the drill -4- out of the alignment hole, thereby releasing the chain tensioner.

-- Install the right camshaft timing chain with the chain sprocket and chain tensioner.

Fig 6: Identifying Drill Bit -4- And Alignment Hole

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The slots in the camshaft chain sprocket must be at the middle position in relation to the threaded holes in the camshaft.

-- Tighten the chain tensioner bolts -1-.

-- Install both camshaft chain sprocket bolts -2- loosely.

It must still be possible to rotate the camshaft chain sprocket on the camshaft and it must not tip.

-- Secure the right camshaft with the Camshaft Adjustment Pins:T40060 .

The bolt -arrow- in the Camshaft Adjustment Pins:T40060 must be perpendicular to the center axis of the camshaft.

-- Pull the drill -3- out of the alignment hole, thereby releasing the right chain tensioner.

-- Pre-tighten the right camshaft chain sprocket using the Chain Sprocket Tensioner:T40062 and torque wrench to 20 Nm in direction of -arrow- and hold the pretension.

Fig 7: Identifying Bolts -1 And 2-, Torque Wrench, Adapter T40062 And Adjustment Pin T40060

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts -1 and 2-.

-- Remove Chain Sprocket Tensioner:T40062 and Camshaft Adjustment Pin Camshaft Adjustment Pins:T40060 .

-- Tighten the remaining bolts for the right camshaft chain sprocket.

-- Pre-tighten the left camshaft chain sprocket using the Chain Sprocket Tensioner:T40062 and torque wrench to 15 Nm in direction of the -arrow- and hold the pretension.

Fig 8: Identifying Adapter T40062 On Left Camshaft Chain Sprocket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts -1 and 2-.

-- Remove Chain Sprocket Tensioner:T40062 and Camshaft Adjustment Pin Camshaft Adjustment Pins:T40060 .

-- Tighten the remaining bolts for the left camshaft chain sprocket.

-- Remove the Crankshaft Holder:3242 .

Fig 9: Identifying Crankshaft Holder 3242

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Checking the Valve Timing

Fig 10: Identifying Valve Timing, Checking

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

Components could be damaged by the camshaft timing chain jump off.

Turn crankshaft only in direction of engine rotation -arrow-.

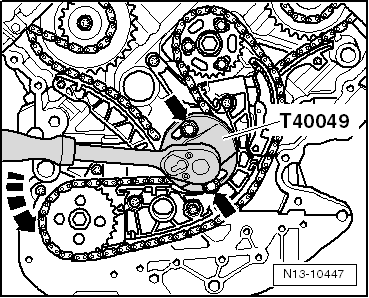

-- Turn the crankshaft two turns using the Crankshaft Key:T40049 until it is just in front of "TDC".

-- Lock the crankshaft -1- from turning using the Crankshaft Key:3242 to 20 Nm.

Fig 11: Identifying Crankshaft Holder 3242

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

An inaccurate "TDC" setting will cause an inaccurate setting.

If the crankshaft was only rotated slightly past "TDC", first rotate it back approximately 10° and then rotate it in engine rotation direction again to "TDC".

-- Check whether camshafts of both cylinder heads stand in "TDC" position.

Fig 12: Checking Camshafts TDC Position

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

It must be possible to secure the camshafts with the Camshaft Adjustment Pins:T40060 .
The pin -arrow- in the Camshaft Adjustment Pins:T40060 must be perpendicular to the center line of the camshaft on cylinder bank 1 (right).

The pin -arrow- in the Camshaft Adjustment Pins:T40060 must be perpendicular to the center line of the camshaft on cylinder bank 2 (left).

Fig 13: Identifying Perpendicular Pin -Arrow- On Adjustment Pin T40060
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
