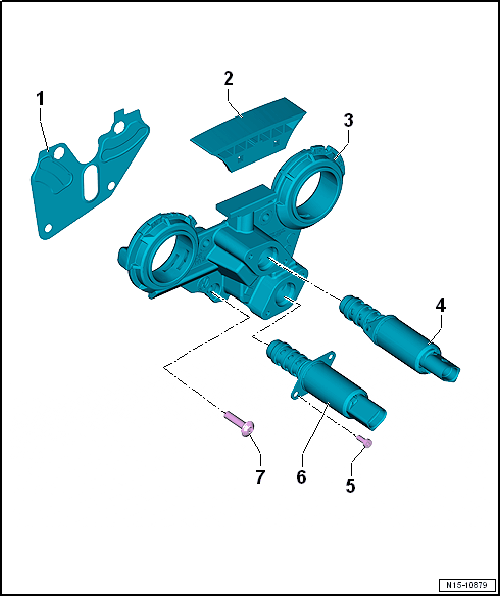

Overview - Control Housing: Notes
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Seal
- Always replace
- Guide Track: Clipped to the Control Housing
- Control Housing
- Camshaft Adjustment Valve 1 -N205-
- Removing and installing. Refer to CAMSHAFT ADJUSTER VALVES, REMOVING AND INSTALLING .
- Bolt
- 3.8 Nm
- Exhaust Camshaft Adjustment Valve 1 -N318-
- Removing and installing. Refer to CAMSHAFT ADJUSTER VALVES, REMOVING AND INSTALLING .
- Bolt
- 8 Nm + 180° turn
- Always replace
