Checking Strainer Of Control Housing For Contaminants

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

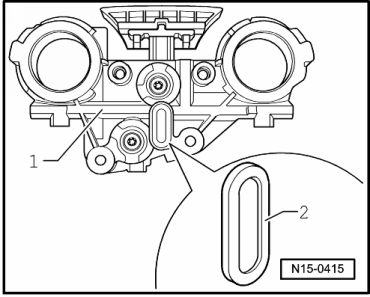

Fig 1: Backside Of Control Housing & Screen
GWWN15-0415Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip strainer -2- at rear side of control housing -1- and remove possible soiling.
