Test Sequence

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove fuel pump fastener from fuse holder. Refer to Wiring Diagram.

Voltage supply to fuel pump activation is interrupted when fuse is removed.

-- Place the :T10118 on the locking button -arrow- and carefully pull the connector down.

Fig 1: Disconnect Electrical Harness Connectors From Ignition Coils

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

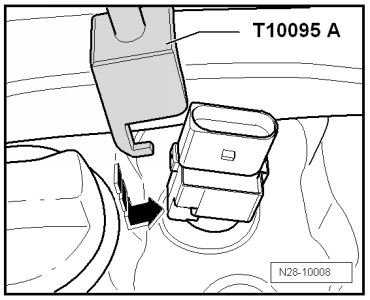

-- Slide the :T10095A on from the straight connector side in direction of -arrow- and remove the ignition coil with power output stage.

Fig 2: Identifying Ignition Coil Puller

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the spark plugs using :3122B .

-- Check the compression pressure using the :VAG1763 , :VAG1381/1 and :VAG1381/5A .

Fig 3: Identifying Compression Tester And Adapter

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

For information on using the tester. Refer to the Operating Instructions.

-- Let a second technician operate the starter just as long until a pressure increase is no longer indicated on the tester.
