High Pressure Sensor -G65-, Removing And Installing: Removing
-- Observe safety precautions when working on the high voltage system. Refer to HIGH VOLTAGE SYSTEM SAFETY PRECAUTIONS .
-- Pay attention to safety precautions for working near high voltage components. Refer to SAFETY PRECAUTIONS NEAR HIGH VOLTAGE COMPONENTS .
-- Note the high voltage system danger classification. Refer to HIGH VOLTAGE SYSTEM GENERAL WARNINGS .
-- See notes. Refer to WORKING ON REFRIGERANT CIRCUIT .
-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER BULKHEAD .
Danger or frostbite due to refrigerant coming out under pressure.
Frostbite on the skin and other parts of the body is possible.
- Wear safety gloves.
- Wear protective eyewear.
- If refrigerant flows out of the refrigerant line longer than 1 second when loosening the pressure sensor, tighten the pressure sensor and replace the faulty check valve.
- Extract refrigerant and open the refrigerant circuit immediately.
- If more than 10 minutes elapse after extracting the refrigerant and the refrigerant circuit was not opened, extract the refrigerant again. Pressure can develop in the refrigerant circuit due to evaporation.

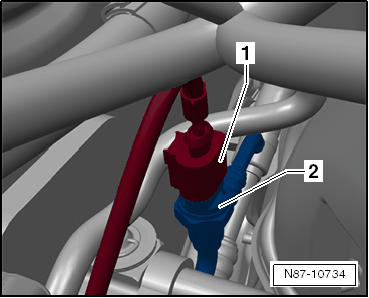

-- Disconnect the connector -1-.
-- Counterhold the refrigerant line with a suitable tool. At the same time loosen the High Pressure Sensor -G65- -2- with the :T40284 .
Danger or frostbite due to refrigerant coming out under pressure. If work is performed improperly the connection can tear and refrigerant can flow out.
Frostbite on the skin and other parts of the body is possible.
- Wear protective gloves.
- Wear protective eyewear.
- Counterhold the refrigerant line with a suitable tool.
-- For all the following work, close the open lines and connections with clean plugs from the :VAS6122 .
-- Remove the High Pressure Sensor -G65- -2-.
