Expansion Valve, Removing And Installing, Rear: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the side trim panel on the left side of the luggage compartment. Refer to FRONT DOOR TRIM PANELS .

Vehicles with Refrigerant R134a

-- Drain the refrigerant circuit. Refer to REFRIGERANT CIRCUIT .

Vehicles with Refrigerant R1234yf

-- Drain the refrigerant circuit. Refer to appropriate service information. .

Continuation for All Vehicles

CAUTION:

Danger or frostbite due to refrigerant coming out under pressure.

Frostbite on the skin and other parts of the body is possible.

- Wear safety gloves.

- Wear protective eyewear.

- Extract refrigerant and open the refrigerant circuit immediately.

- If more than 10 minutes elapse after extracting the refrigerant and the refrigerant circuit was not opened, extract the refrigerant again. Evaporation can cause pressure to develop in the refrigerant circuit.

-- For all the following work, close the open lines and connections with clean plugs from the :VAS6122 .

-- Remove the bolts -A-.

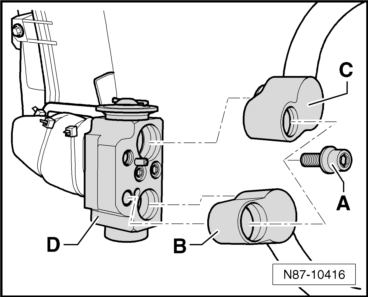

Fig 1: Identifying Refrigerant Lines, Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the refrigerant lines -B and C- from the expansion valve -D-.

-- Remove the bolts -A-.

Fig 2: Identifying Expansion Valve, Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the expansion valve -B-.
