Expansion Valve, Removing And Installing, Front: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

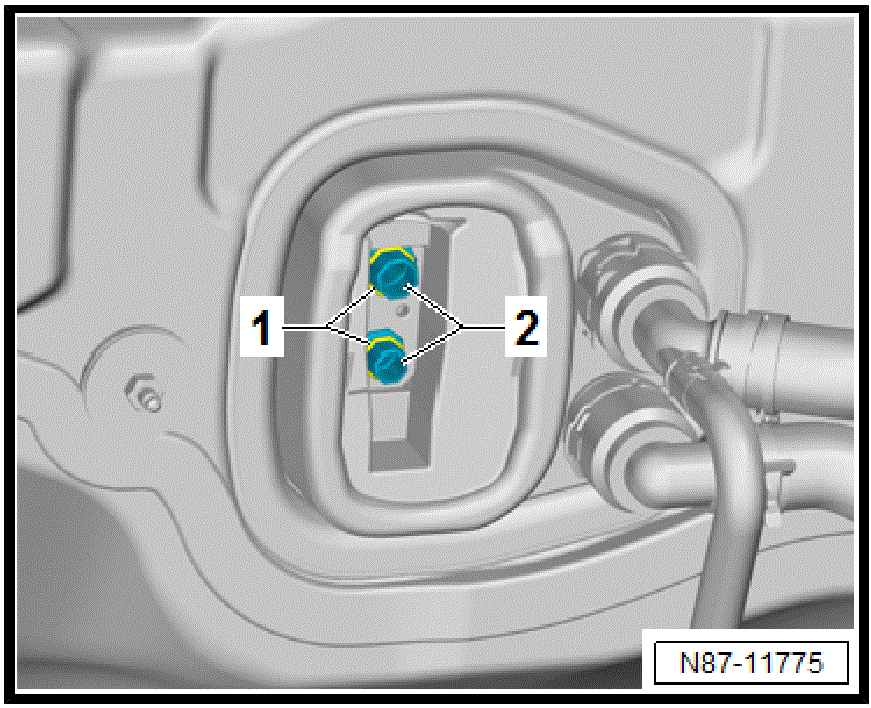

Fig 1:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install in reverse order of removal and note the following:

-- Coat the new seals -1- with refrigerant oil before installing.

-- Push the new seal -1- on the connecting tubes -2-.

-- Check the refrigerant line for contamination and damage. If necessary, clean or replace.

NOTE:

Ignore items -1, 3, and 4-.

A missing or incorrectly installed heat shield insulation -2- can reduce the output of the A/C system (change of the adjusted control characteristic due to radiant heat).

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

- Never start the engine with the refrigerant circuit empty.

Vehicles with Refrigerant R134a

-- Fill the refrigerant circuit. Refer to REFRIGERANT CIRCUIT .

-- Perform the leak test on the closed line connections of the refrigerant circuit. Refer to REFRIGERANT CIRCUIT .

Vehicles with Refrigerant R1234yf

-- Fill the refrigerant circuit. Refer to appropriate service information. .

-- Perform the leak test on the closed line connections of the refrigerant circuit. Refer to REFRIGERANT CIRCUIT .
