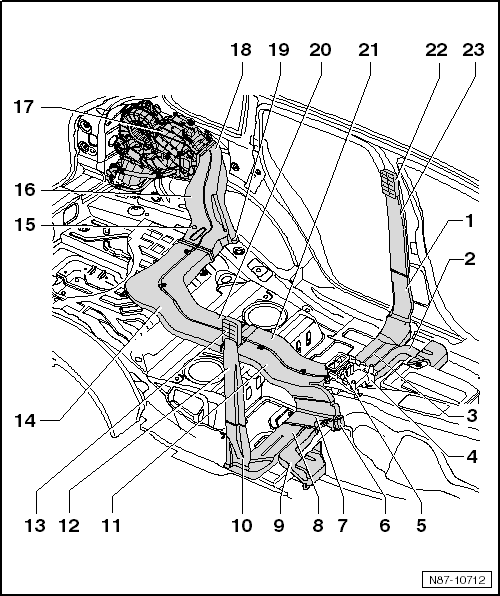

Overview - Heater And A/C Unit

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Under certain conditions, the desiccant bag/dryer cartridge no longer needs to be replaced each time the refrigerant circuit is opened on A/C systems with refrigerant R1234yf. Refer to REFRIGERANT CIRCUIT .

Under certain conditions, the dryer bag no longer needs to be replaced each time the refrigerant circuit is opened on A/C systems with refrigerant R134a. Refer to REFRIGERANT CIRCUIT .

Perform the following work after the repairs have been completed: Conduct the basic setting using the Vehicle Diagnostic Tester.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Left B-Pillar Air Guide Channel
- Removal and installation
  -- Remove the front seat. Refer to Front Seats .

  -- Remove the left B-pillar trim panel. Refer to Pillar Trim .

  -- Lift the carpet and remove the two air guide channel nuts (2 Nm).
Left Footwell Air Guide Channel
- Removal and installation
  -- Remove the front seat. Refer to FRONT SEATS .

  -- Lift the carpet and remove the air guide channel screw (2 Nm).
Left Air Guide Channel
- Connection to the B-pillar air guide channel
- Removal and installation
  -- Remove the front seat. Refer to FRONT SEATS .

  -- Lift the carpet and unclip the air guide channel.
Left B-Pillar/Footwell Shut-Off Door Motor -V212-
- Removal and installation
  -- Remove the front seat. Refer to FRONT SEATS .

  -- Remove the center console. Refer to STORAGE COMPARTMENTS, COVERS AND TRIM .

  -- Lift the carpet and remove the screws from the Left B-Pillar/Footwell Shut-Off Door Motor -V212-.
Right Rear Upper Body Vent Motor -V316-
- Removal and installation
  -- Remove the center console. Refer to STORAGE COMPARTMENTS, COVERS AND TRIM .

  -- Remove screws from the Right Rear Upper Body Vent Motor -V316-.
Right B-Pillar/Footwell Shut-Off Door Motor -V211-
- Removal and installation
  -- Remove the front seat. Refer to FRONT SEATS .

  -- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

  -- Lift the carpet and remove the screws from the Right B-Pillar/Footwell Shut-Off Door Motor -V211-.
Air Guide Channel with B-Pillar Shut-Off Door and Right Footwell
- Removal and installation
  -- Remove the front seat. Refer to FRONT SEATS .

  -- Lift the carpet and remove the 2 nuts (2 Nm) at the air guide channel.
Right Air Guide Channel
- Connection to the B-pillar air guide channel
- Removal and installation
  -- Remove the front seat. Refer to FRONT SEATS .

  -- Lift the carpet and unclip the air guide channel.
Right Footwell Air Guide Channel
- Removal and installation
  -- Remove the front seat. Refer to FRONT SEATS .

  -- Lift the carpet and remove the screw (2 Nm) at the air guide channel.
Right B-Pillar Air Guide Channel
- Removal and installation
  -- Remove the front seat. Refer to FRONT SEATS .

  -- Remove the right B-pillar trim panel. Refer to B-PILLAR TRIM, REMOVING AND INSTALLING .

  -- Lift the carpet and remove the two air guide channel nuts (2 Nm).
Right Air Guide Channel
- Removal and installation
  -- Remove the bench seat and rear backrest. Refer to REAR SEATS and REAR SEATS .

  -- Lift the carpet and remove the screw (1.4 Nm) at the air guide channel.
Right B-Pillar Air Guide Channel
- Removal and installation
  -- Remove the front seat. Refer to FRONT SEATS .

  -- Remove the right B-pillar trim panel. Refer to B-PILLAR TRIM, REMOVING AND INSTALLING .
B-Pillar Vent, Right
- Removal and installation
  -- Remove the front seat. Refer to B-PILLAR TRIM, REMOVING AND INSTALLING .

  -- Remove the right B-pillar trim panel. Refer to B-PILLAR TRIM, REMOVING AND INSTALLING .
Right Air Guide Channel
- Removal and installation
  -- Remove the bench seat, the backrest and the luggage compartment floor. Refer to REAR SEATS and REAR SEATS .

  -- Lift the carpet and remove the three screws (2 Nm) at the air guide channel.
Right Rear Vent Temperature Sensor -G406-
- Removing and installing. Refer to RIGHT REAR VENT TEMPERATURE SENSOR -G406-, REMOVING AND INSTALLING .
Right Air Guide Channel
- Removal and installation
  -- Remove the left luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT TRIM PANELS .
Second Heater and A/C Unit
- Removing and installing. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
- Second heater and A/C unit, bringing into service position. Refer to REAR HEATER AND A/C UNIT, SERVICE POSITION .
Left Air Guide Channel
- Removal and installation
  -- Remove the left luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT TRIM PANELS .
Left Rear Vent Temperature Sensor -G405-
- Removing and installing. Refer to LEFT REAR VENT TEMPERATURE SENSOR -G405-, REMOVING AND INSTALLING .
Left Air Guide Channel
- Removal and installation
  -- Remove the bench seat, the backrest and the luggage compartment floor. .

  -- Lift the carpet and remove two screws (1.4 Nm) and one nut (2 Nm) at the air guide channel.
Left Air Guide Channel
- Removal and installation
  -- Remove the bench seat and rear backrest. .

  -- Lift the carpet and remove the screw (1.4 Nm) at the air guide channel.
B-Pillar Vent, Left
- Removal and installation
  -- Remove the front seat. Refer to appropriate service information .

  -- Remove the left B-pillar trim panel. Refer to B-PILLAR TRIM, REMOVING AND INSTALLING .
Left B-Pillar Air Guide Channel
- Removal and installation
  -- Remove the front seat. Refer to B-PILLAR TRIM, REMOVING AND INSTALLING .

  -- Remove the left B-pillar trim panel. Refer to B-PILLAR TRIM, REMOVING AND INSTALLING .
